Additional Information
Due to the permanent and potentially destructive nature of soldering and connecting to other devices in general, always remember to test electronics first, before attempting to solder to them or connect any accessories.
For a flight controller, this can always be achieved by connecting to the board via USB and verifying that everything is working via the configurator. To test an ESC, you can power up the board via crocodile clips. We sell crocodile clips here for this very purpose.
Please see the Items requiring soldering section of our refund policy for more information.
Reward Points ⭐️
You could earn 194 points from this item. Learn more.
Description
Specification

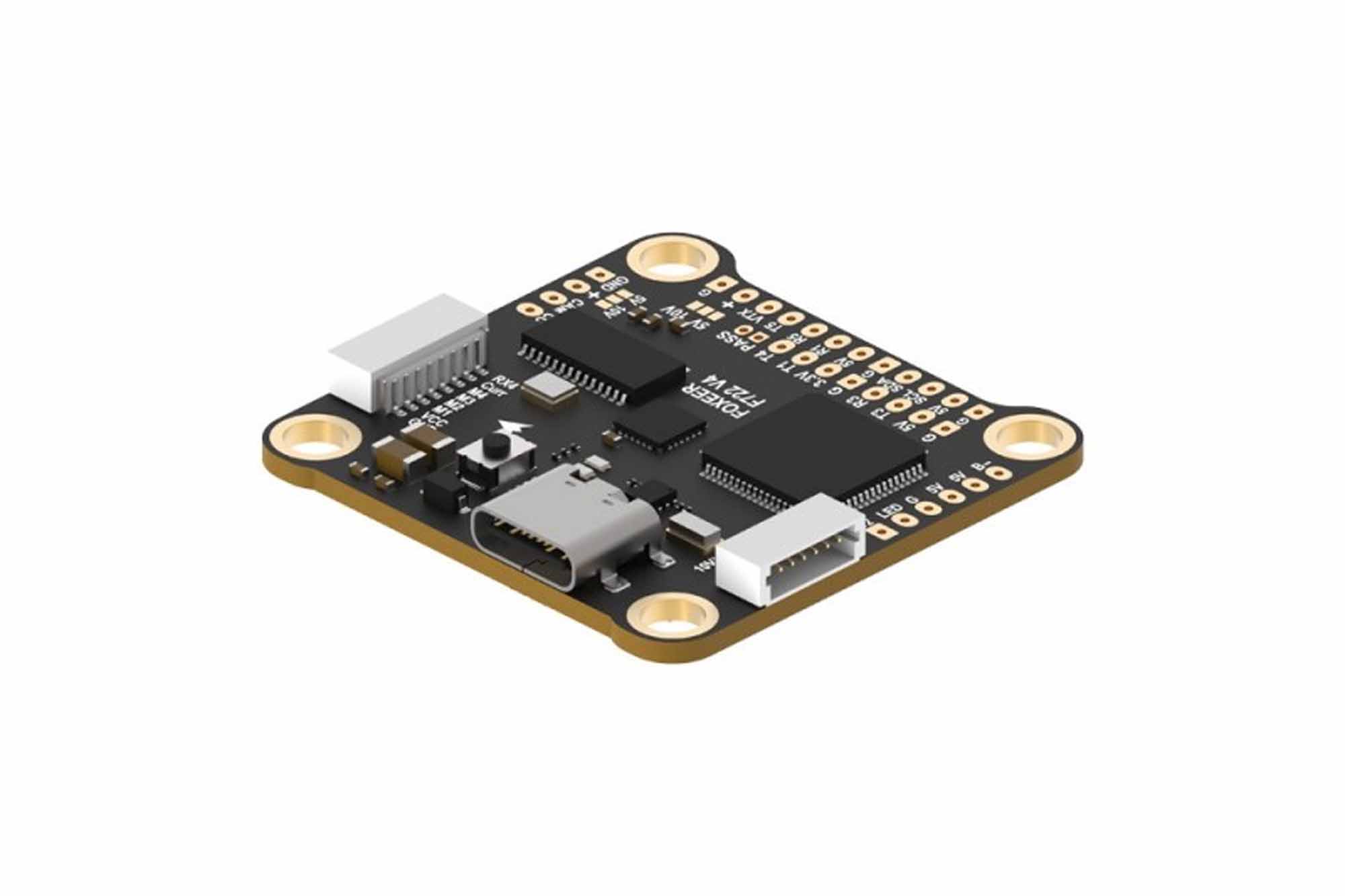

| Model | F722 V4 MPU6000 |
| CPU | STM32F722RET6 |
| Gyro | MPU6000 |
| Barometer | DPS310 |
| Power Supply | 4~8S Lipo |
| BEC Output | DC5V/2A; DC10V/2A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 5 Sets+Rx4 |
| ESC Telemetry | RX4 |
| Buzzer | YES |
| Connector | DJI/HDzero |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| X8 Supported | Need CLI |
| Firmware | BetaFlight:FOXEERF722V4; |
| Size | 37X37mm |
| Mounting Hole | 30.5X30.5mm,Φ4mm |
| Weight(g) | 7.7g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*FC, 4*Rubbers Columns, 1*Cable |
Product Details
| Product Type | Flight Controller |
| Shipping Weight | 22 grams |
| Vendor | Foxeer |
| Quantity | 1 |
