Additional Information
Due to the permanent and potentially destructive nature of soldering and connecting to other devices in general, always remember to test electronics first, before attempting to solder to them or connect any accessories.
For a flight controller, this can always be achieved by connecting to the board via USB and verifying that everything is working via the configurator. To test an ESC, you can power up the board via crocodile clips. We sell crocodile clips here for this very purpose.
Please see the Items requiring soldering section of our refund policy for more information.
Reward Points ⭐️
Description
Description

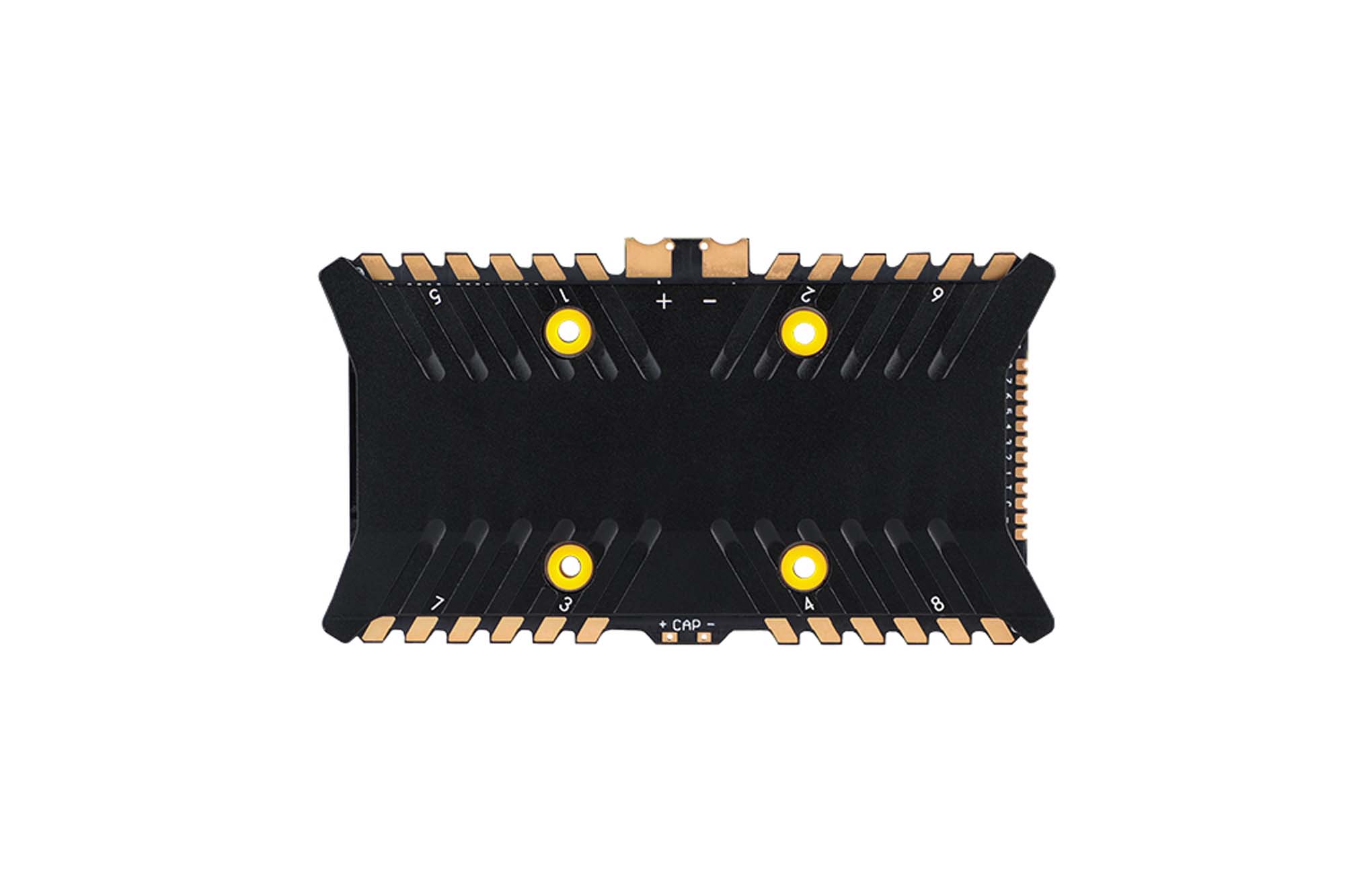

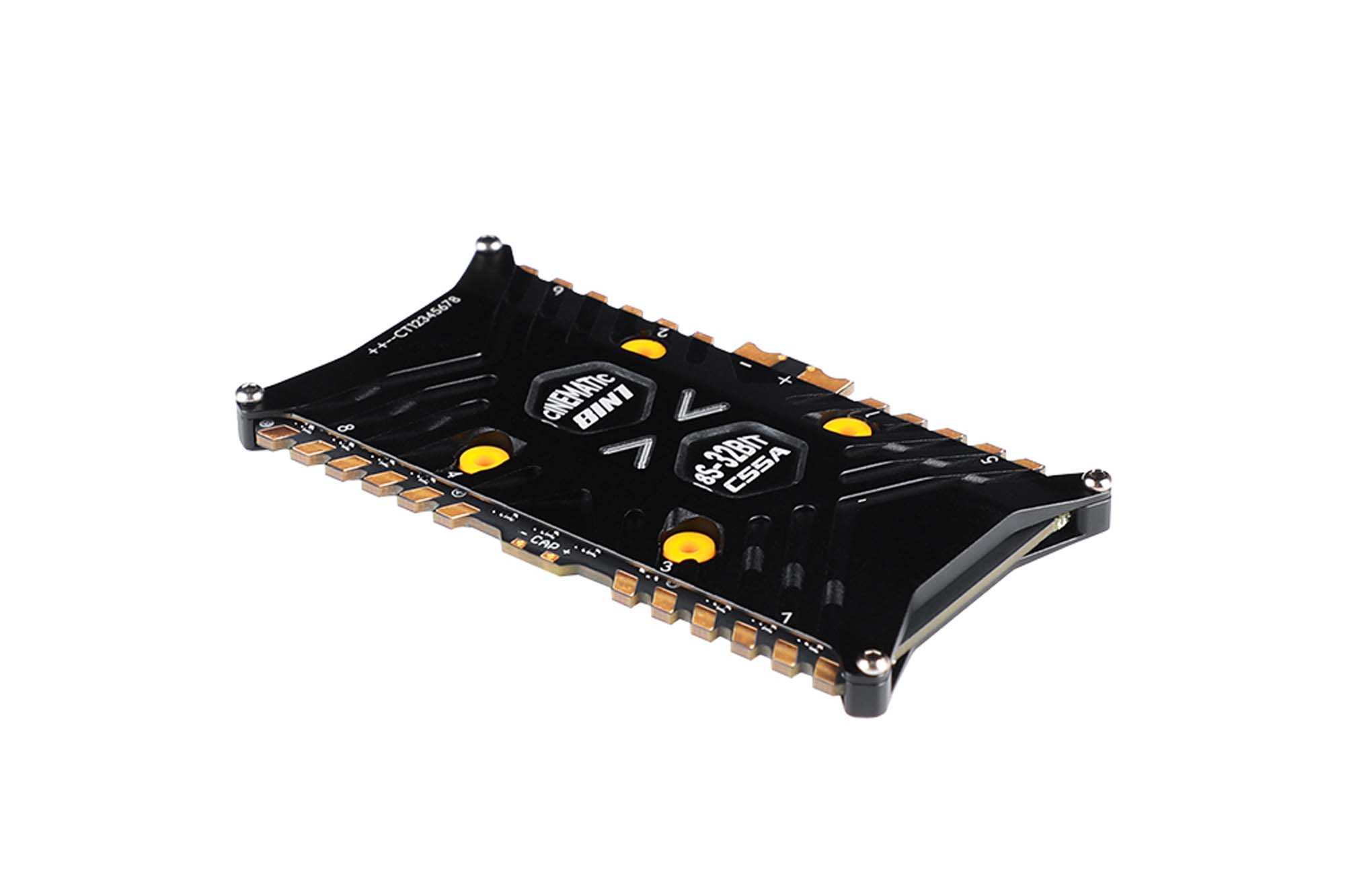

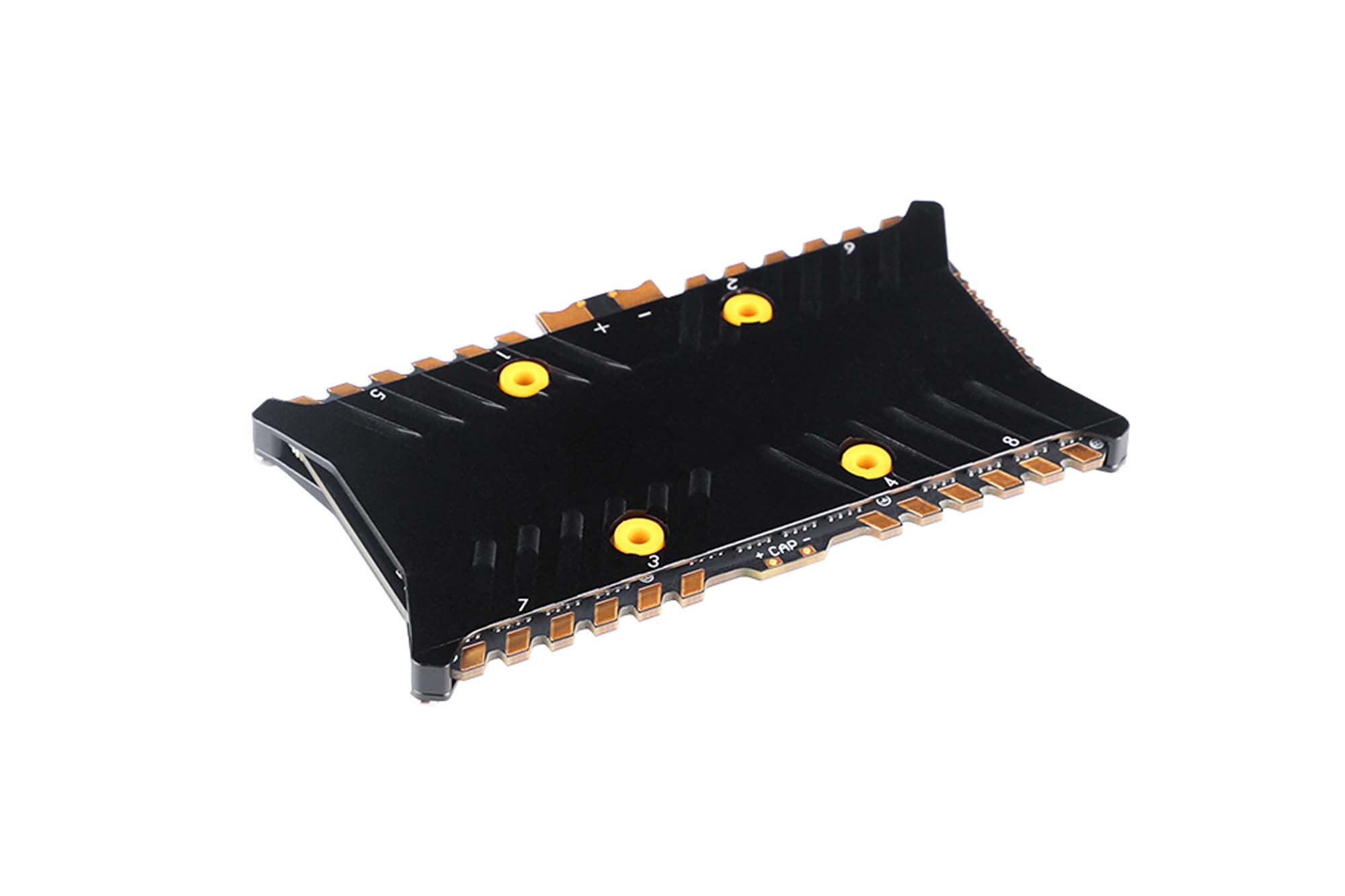

This ESC is perfect for large Cinelifters running 8 motors and up to 8S voltage! This ESC makes building a breeze as you no longer need to wire up two 4-in-1 ESCs. Combine this ESC with the T-Motor F7 Pro Flight Controller and make wiring even easier as the ESC and FC can connect with just one wire harness!
Features
Perfect for large Cinelifters running 8 motors and up to 8S voltage
48 full-size imported MOs on board
Doubled-sized matte black heatsink
118 filtering capacitors on board
External dual capacitor pad
Extended telemetry transmission
Specifications
- Input Voltage: 3-8S
- Current: 8x55A
- Burst Current: 8x65A
- Amp Meter Scale: 100
- ESC Software: BLHeli_32
- PWM Frequency: 16-128KHz
- Weight: 64g
- Mounting Pattern: 30.5×30.5mm
Includes
- 1x ESC
- 1x 200mm 10AWG XT60 Power Cable
- 8x Short silicone shock-absorbing washer
- 8x Long silicone shock-absorbing washer
- 2x SH1.0-8P connectors
- 2x SH1.0-10P connectors
- 1x Double-sided SH1.0 FC connector hardness
- 1x Single-sided SH1.0 FC connector hardness
- 2x Capacitor
- 1x QC PASS Card
- 2x Stickers
Product Details
| Product Type | ESC |
| Shipping Weight | 179 grams |
| Vendor | T-Motor |
