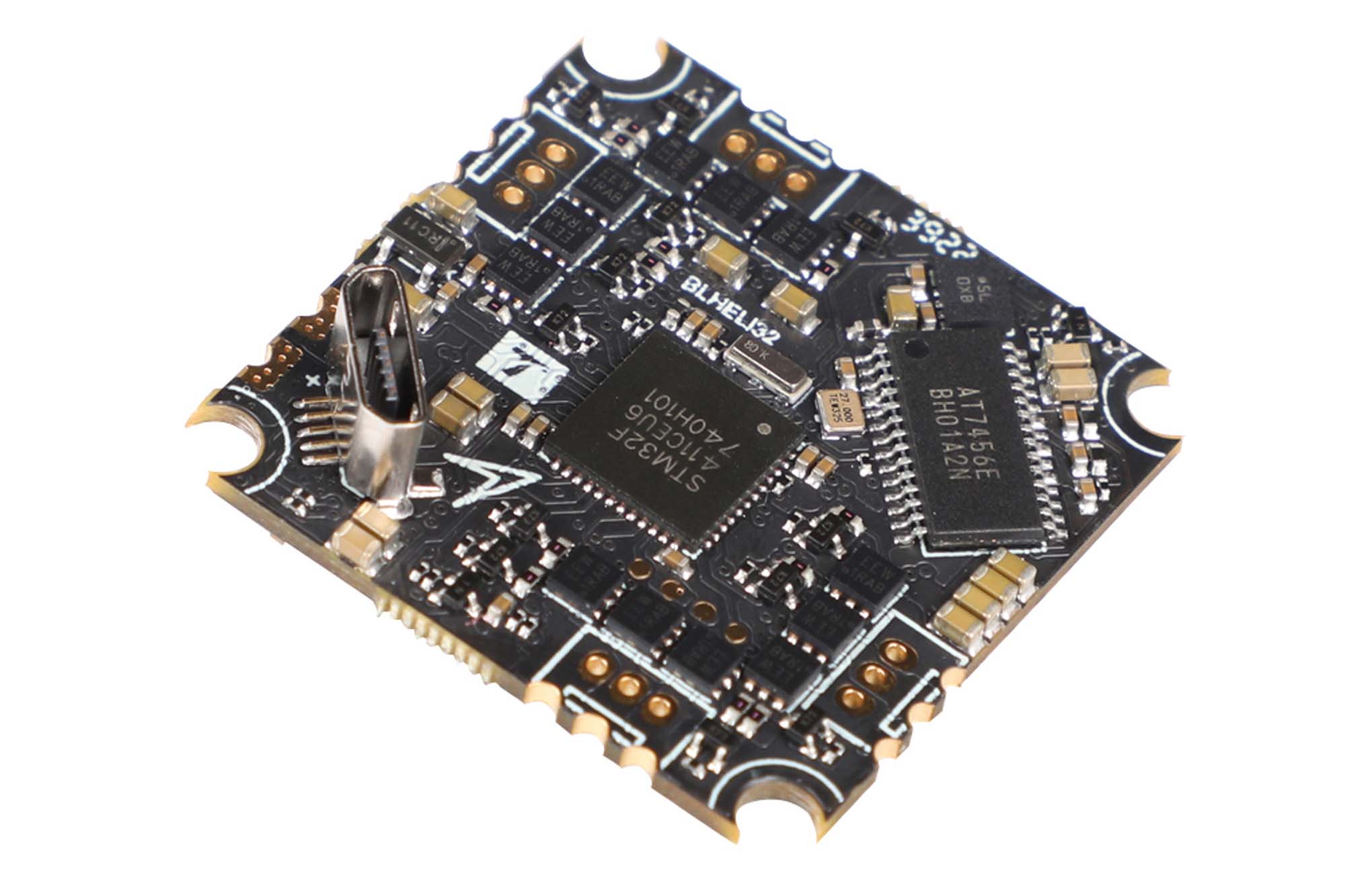

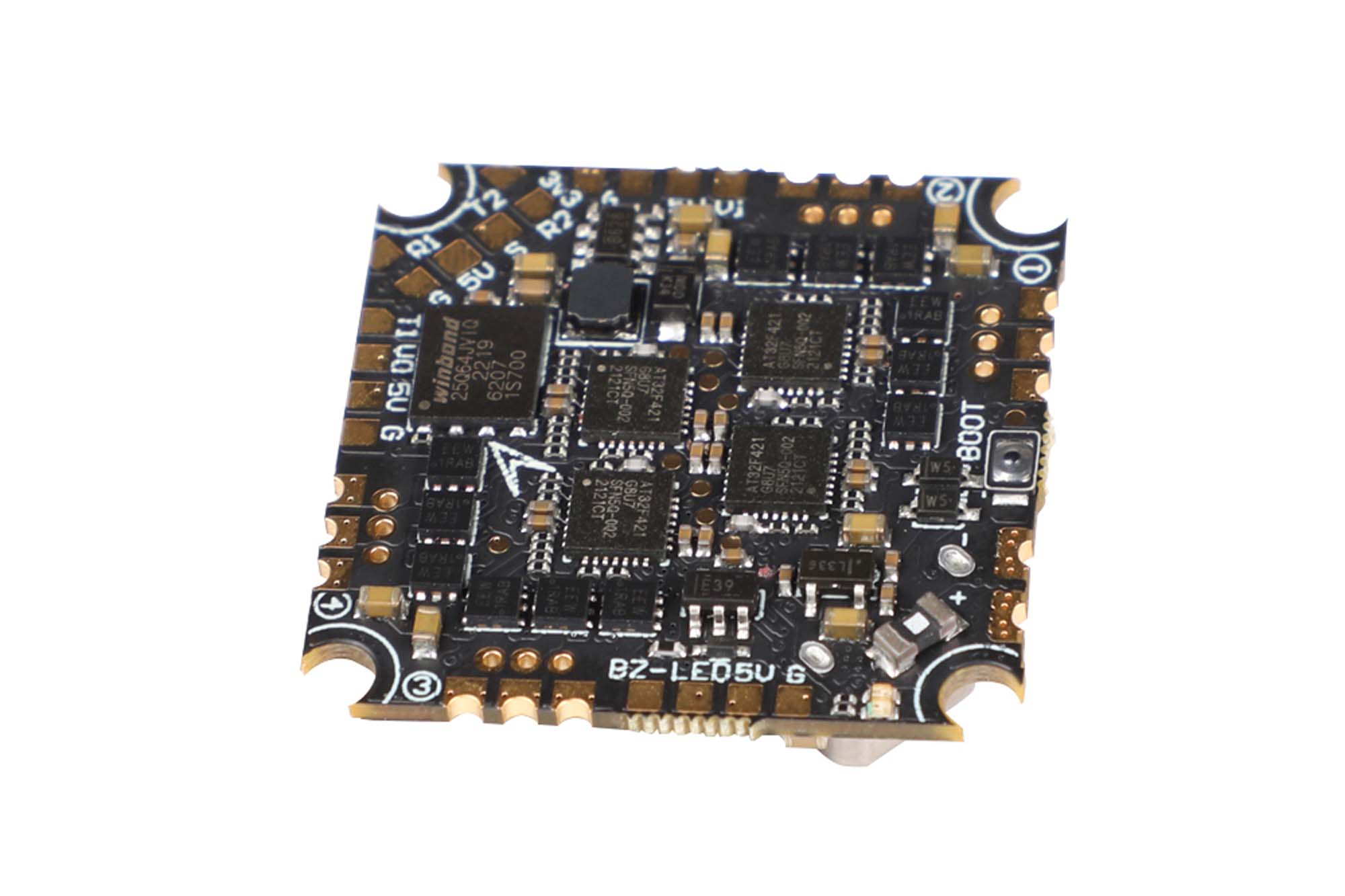

The T-Motor F4 13A 1S AIO board is ideal for constructing miniature tinywhoops. It works well with the T-Motor M0803 or M0802 motor. The board can support a maximum PWM frequency of 96K and has a built-in 16Mbit black box logging feature.
Specifications
- Input Voltage: 1S
- Continuous Current: 13A
- ESC Firmware: BLHeli32
- PWM Frequency: 24-96K
- MCU: STM32F411
- Gyro: BMI270
- Size: 29.5×29.5mm
- Weight: 5.7g
- Mounting Hole: 25.5×25.5mm (M2 Holes)
Product Details
| Product Type | ESC |
| Shipping Weight | 22 grams |
| Vendor | T-Motor |
