Additional Information
Due to the permanent and potentially destructive nature of soldering and connecting to other devices in general, always remember to test electronics first, before attempting to solder to them or connect any accessories.
For a flight controller, this can always be achieved by connecting to the board via USB and verifying that everything is working via the configurator. To test an ESC, you can power up the board via crocodile clips. We sell crocodile clips here for this very purpose.
Please see the Items requiring soldering section of our refund policy for more information.
Reward Points ⭐️
Description
Description

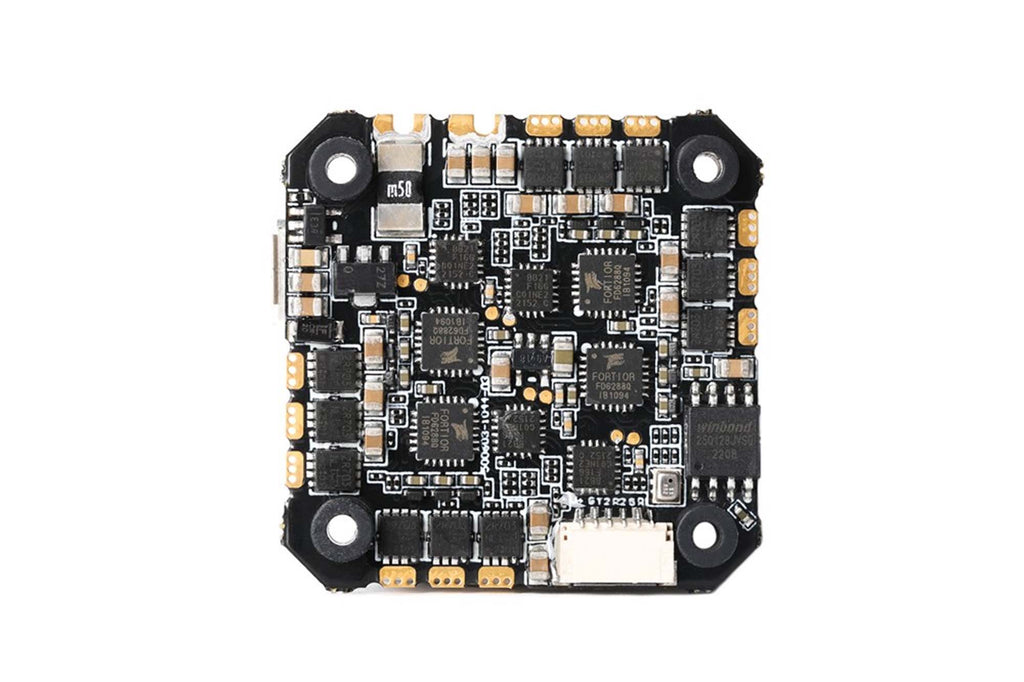

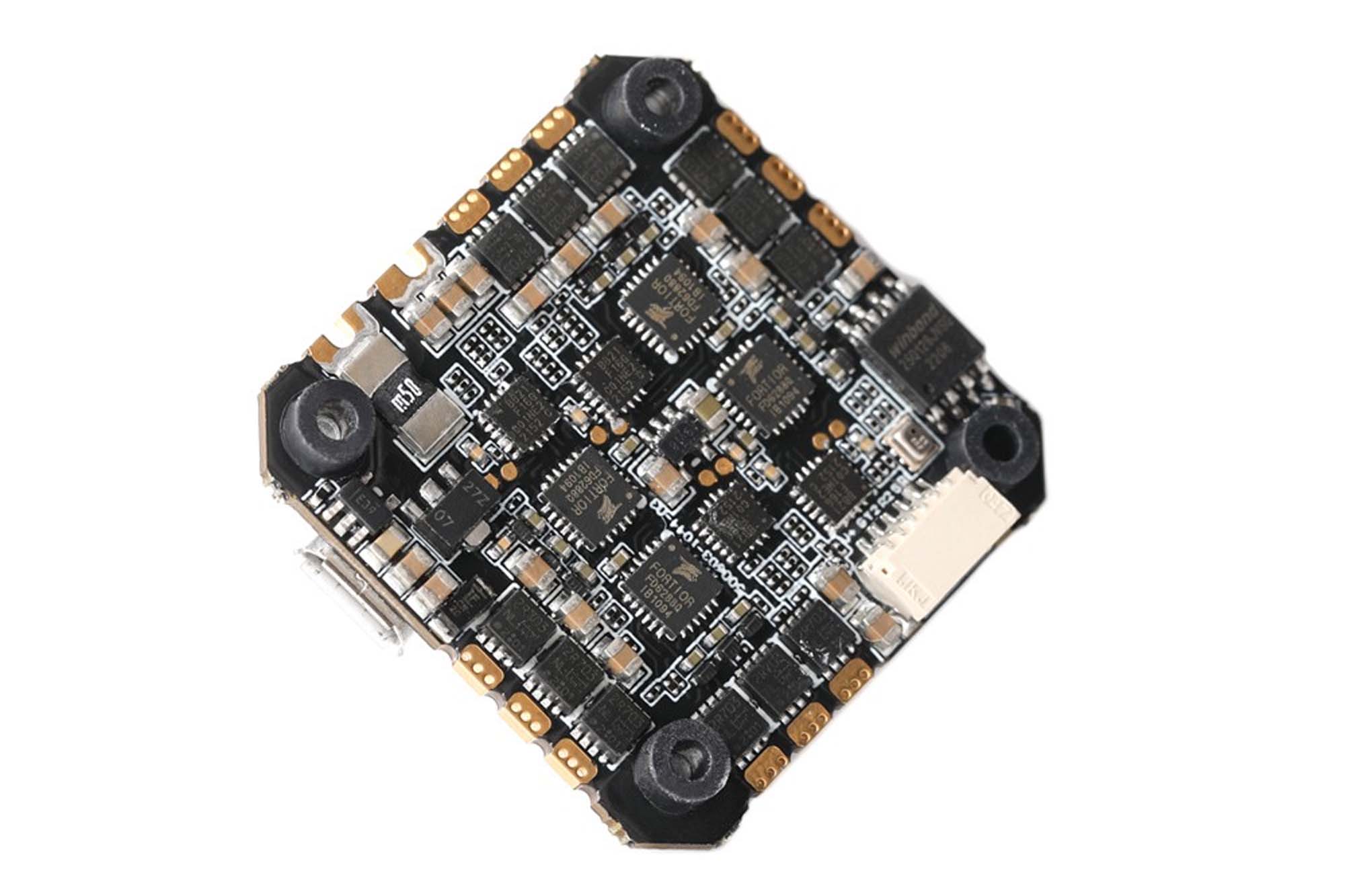

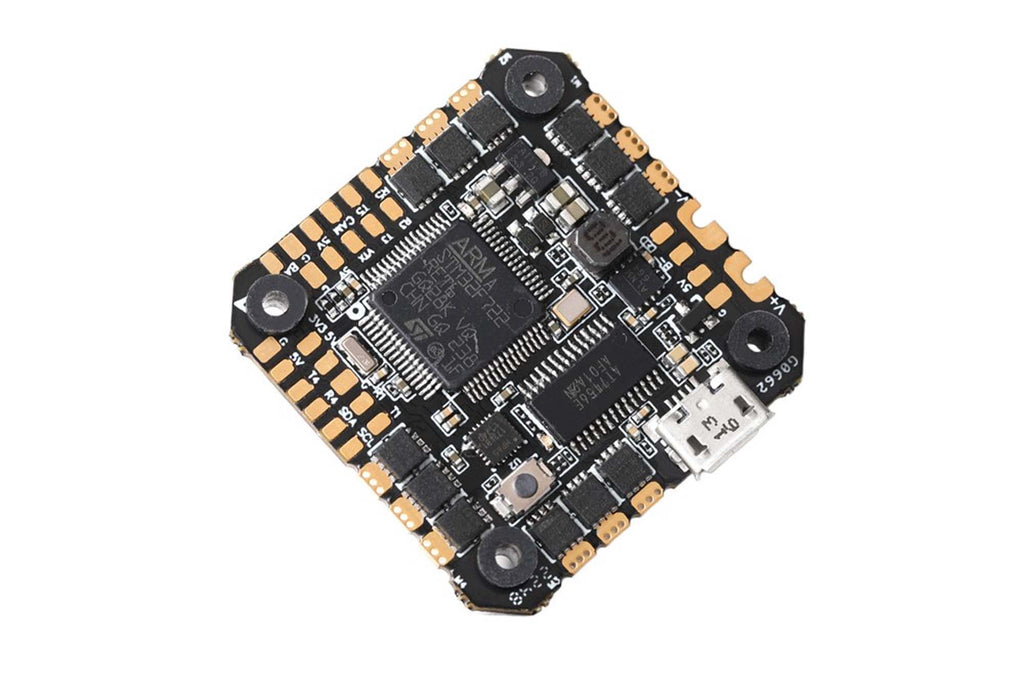

Take your drone to new heights with the T-motor F7 35A AIO Flight Controller, the ultimate brain for your flying machine. This isn’t just a flight controller; it’s a ticket to the stratosphere.
Are you tired of your drone acting like it has a mind of its own? Do you crave precision, control, and reliability? Then say hello to the T-motor F7 35A AIO Flight Controller. It’s like giving your drone an Ivy League education.
Features
- Powerful MCU: The STM32F722 MCU ensures rapid processing for smooth and responsive flight.
- Stable Gyro: The MPU6500 Gyro provides stability, even in challenging conditions.
- Accurate Barometer: The BMP280 Barometer gives you precise altitude readings.
- Generous Black Box Storage: With a 16MB black box, you’ll have plenty of room for data storage.
- Versatile Compatibility: Supports both HD and Analog for maximum flexibility.
- Robust Current: With a continuous current of 35A and a peak current of 40A, this flight controller can handle demanding flights with ease.
Specifications

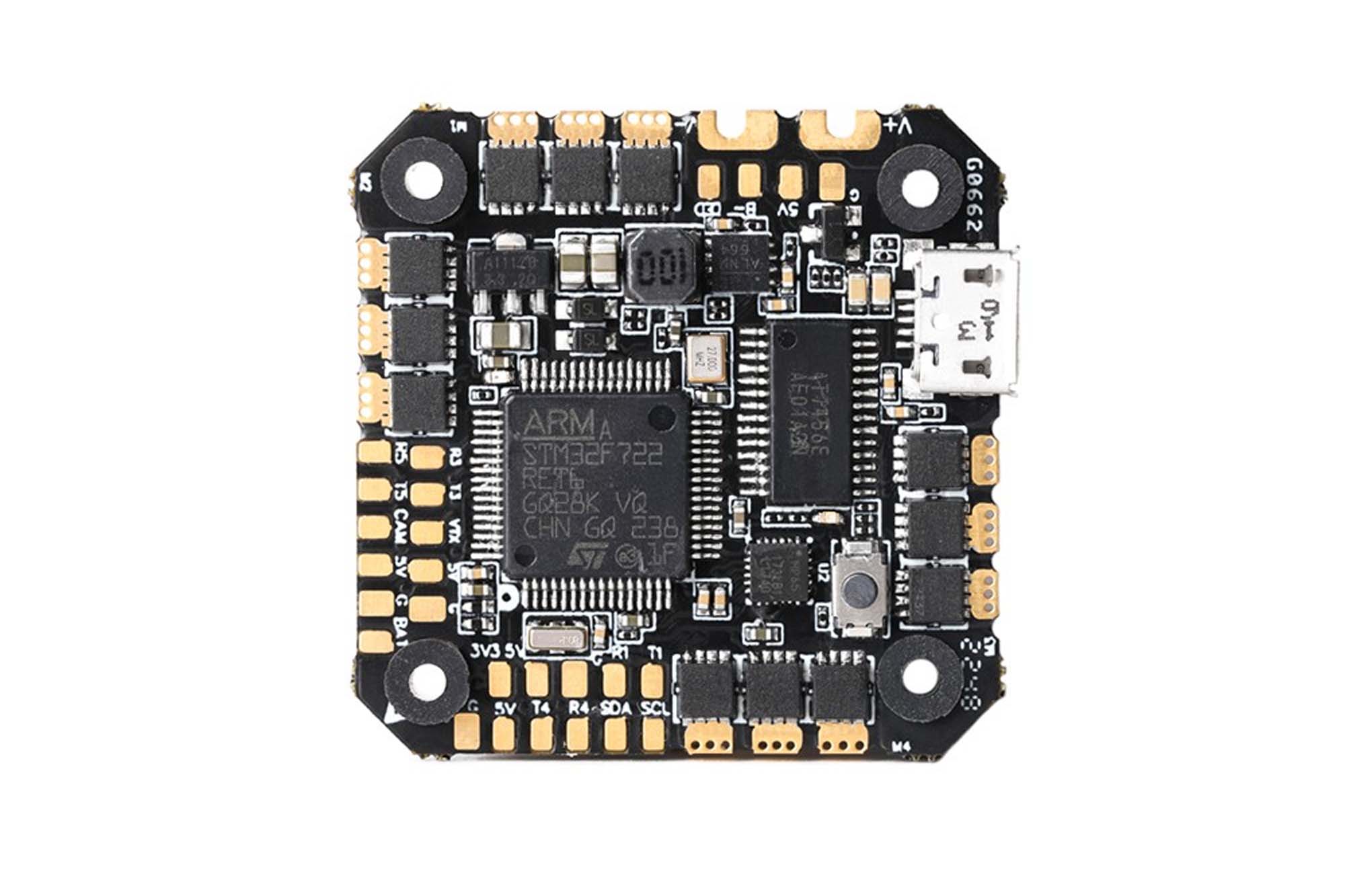

- MCU：STM32F722
- Gyro：MPU6500
- Barometer：BMP280
- OSD：AT7456&HD
- Black box：16MB
- BEC：5V/1.5A
- Input voltage：3–6S
- Continuous current：35A
- Peak current：40A
- ESC firmware：BLS\Bluejay
- Size: 39*39mm
- Mounting hole:25.5*25.5/φ3mm
- Supports HD and Analog
- Recommendation: P1804/F2004/F2203.5
Product Details
| Product Type | Flight Controller |
| Shipping Weight | 38 grams |
| Vendor | T-Motor |
| Number of cells | 6 |
| Quantity | 1 |
