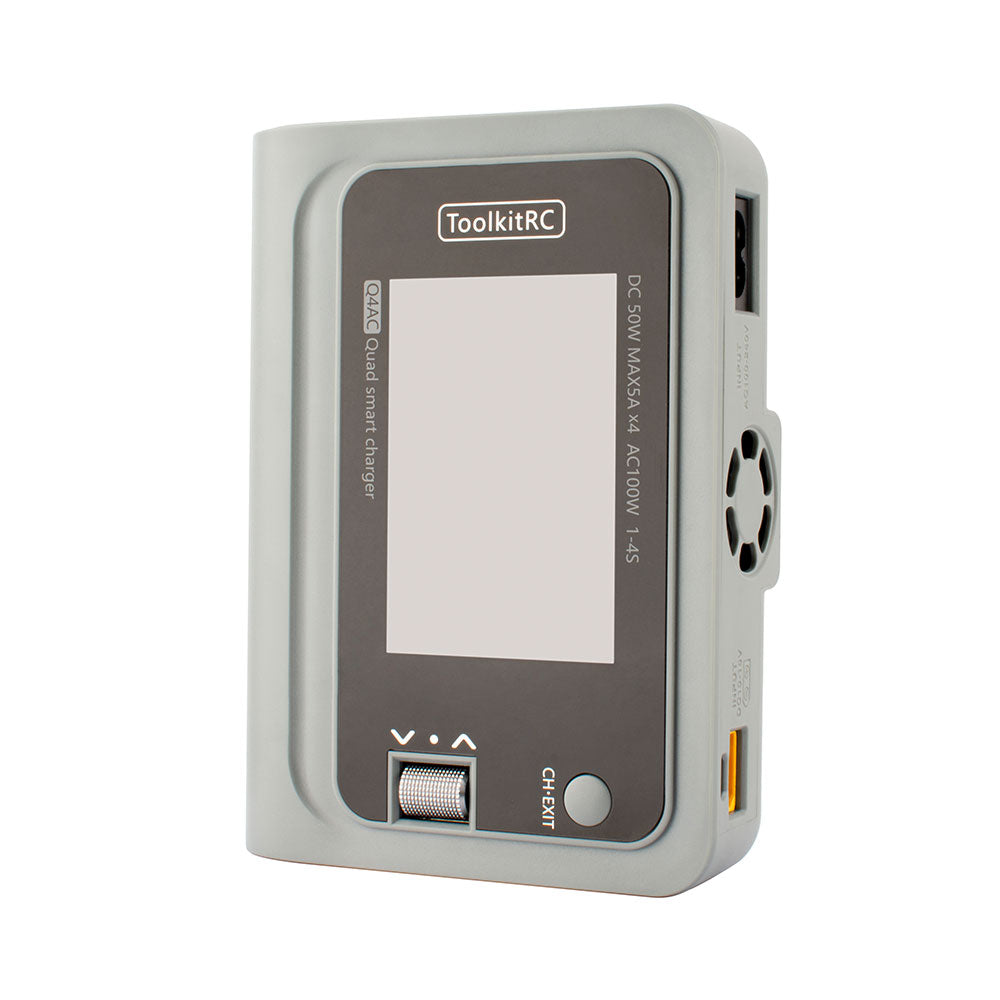

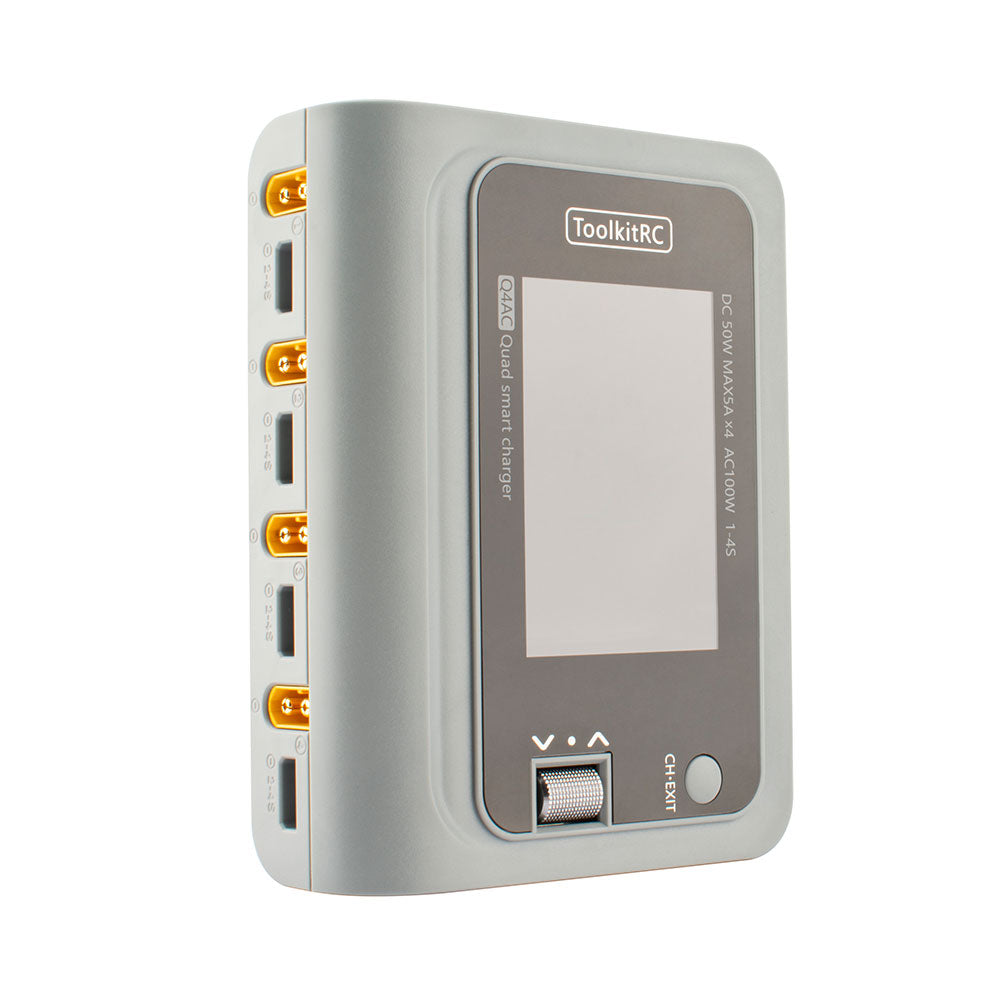

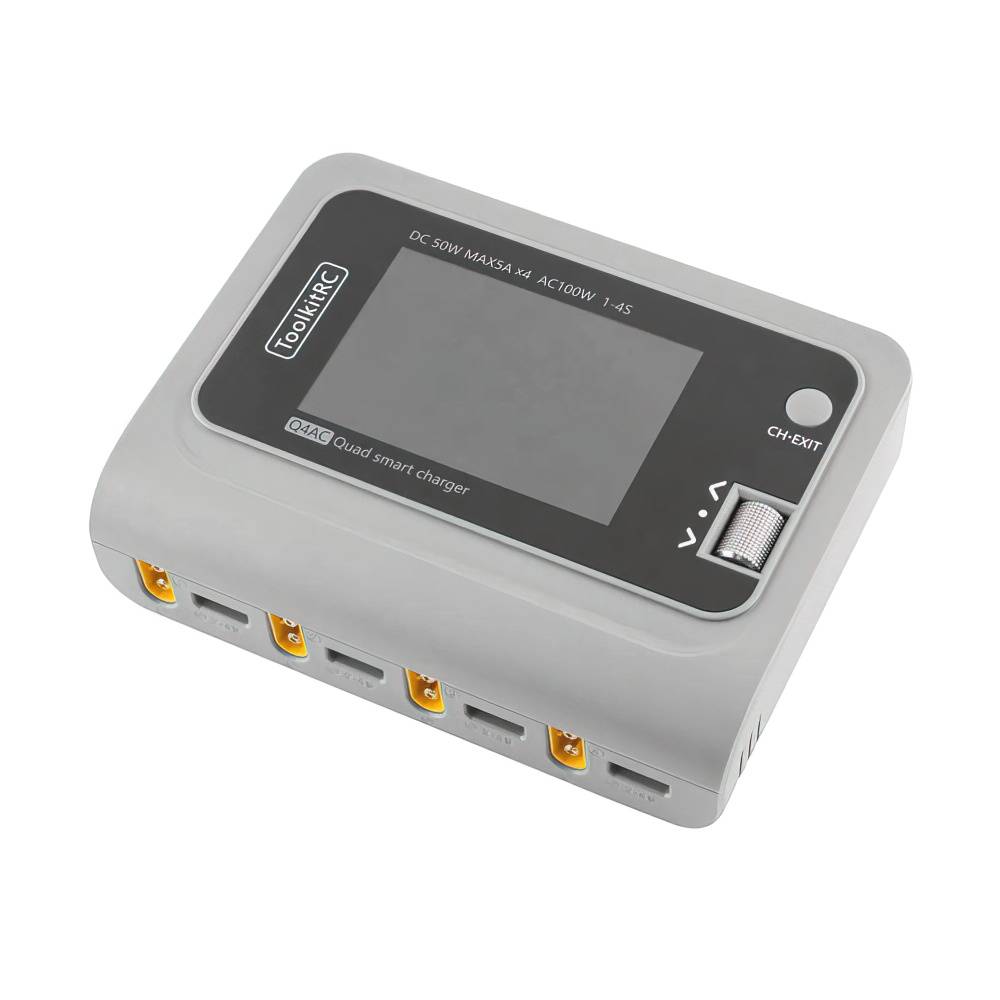

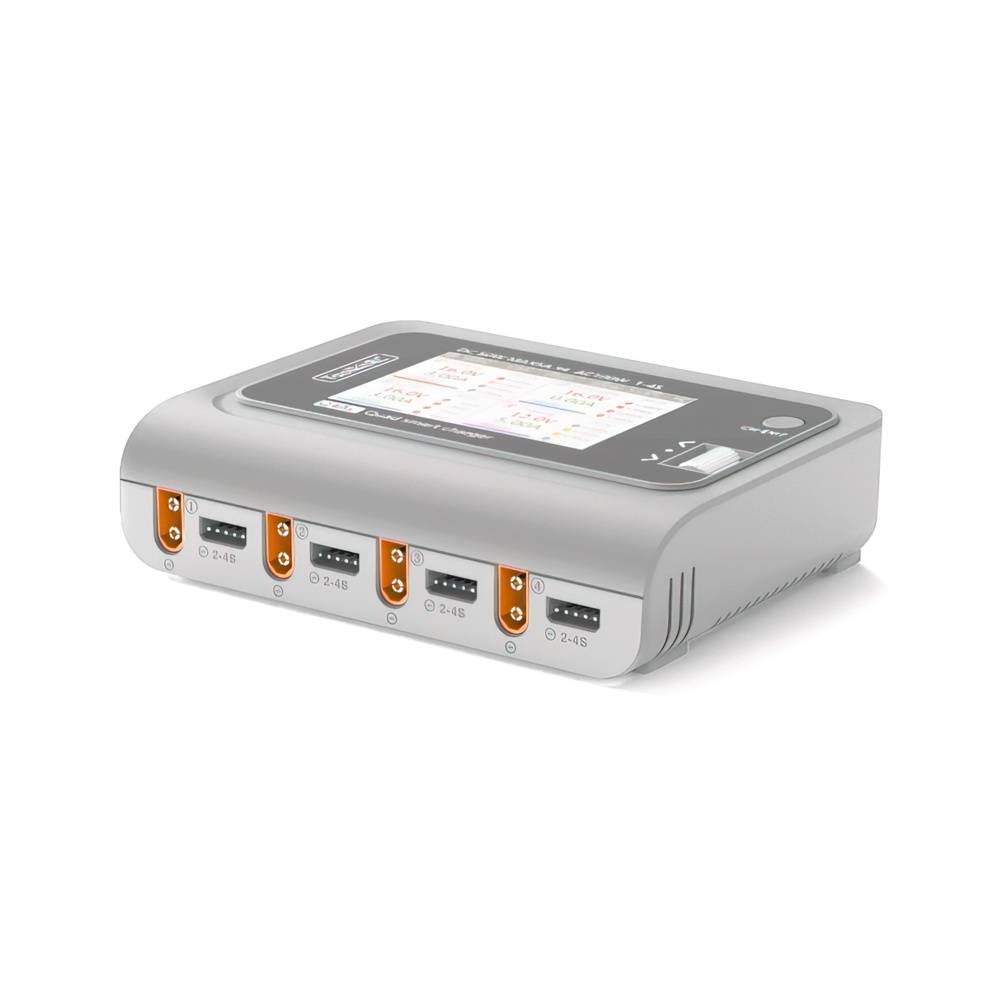

ToolkitRC Q4AC 1-4S 100W AC / 200W DC 4CH Smart Charger - XT60

The ToolkitRC Q4AC is an updated version of the M4Q with a faster processor, upgraded charging power, and a new casing. This is a Quad Channel AC/DC smart charger featuring four independently operated charging outputs. This charger comes with a 32-bit ARM Processor, IPS wide-angle display, XT60 ports, and 10 language options.

Specifications

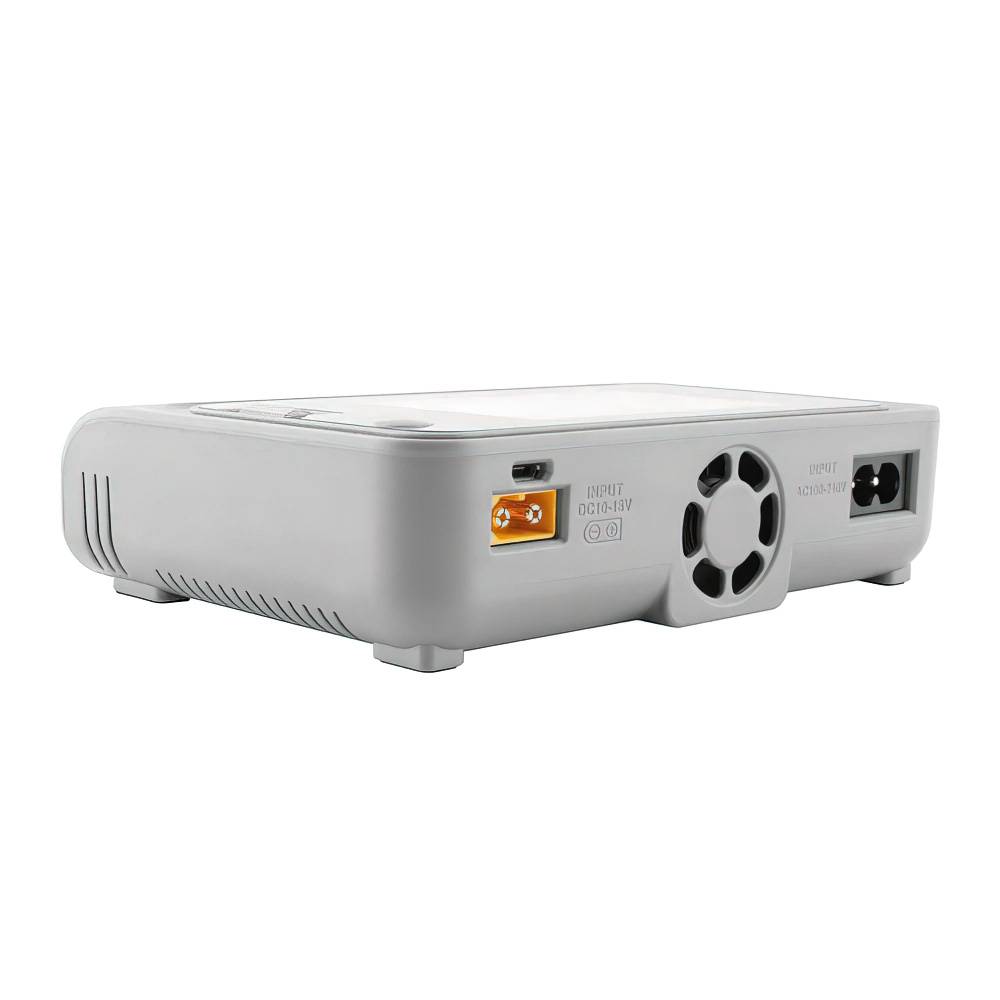

• Charging Input: AC100-240V@MAX1.5A DC10-18V@MAX20A
• Battery Type: LiPo LiHV LiFe Lion@1-4S NiMh @1-10S Pb @1-8S
• Bal Cur.: 240mA @2-4S
• Accuracy: <0.005V
• Charging Power:
  • 0.1-5A@50W*4 DC input
  • 0.1-5A@50W*2 AC input
  • 0.1-5A@25W*4 AC input
• Discharge power:
  • 0.1-2A@5W*4
• Firmware upgrade: USB
• Battery Voltage: 1.0V-5.0V @1-4S
• Battery Internal Resistance: 1-100mR @1-4S
• Display LCD IPS: 3.5″ 480*320px
• Product Size: 150mm*112mm*36.5mm
• Weight: 450g
• Individual Packing Size 160mm*160mm*46mm
• Shipping Weight: 600g

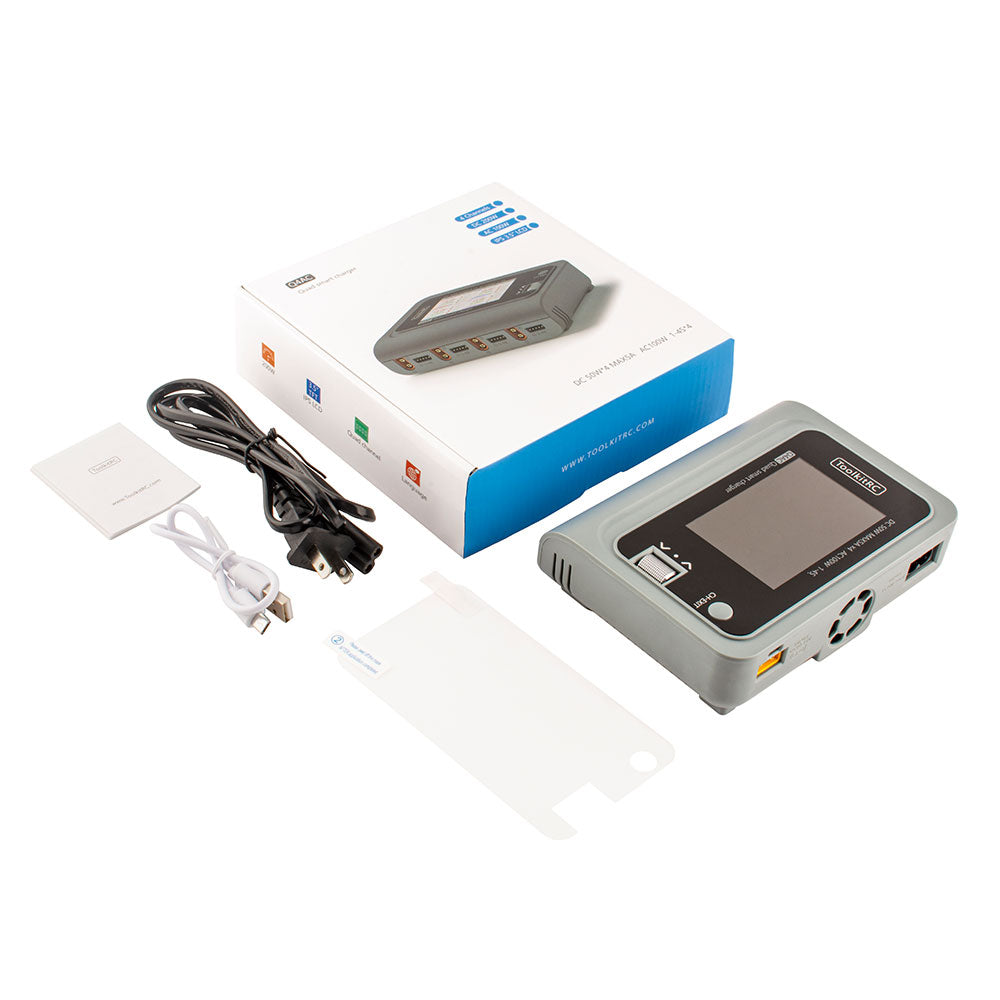

Includes

• 1 x ToolkitRC Q4AC 4x50W AC/DC Charger

Problems?

If you're facing problems with mismatched voltages etc, please make sure to calibrate the voltages by holding down the confirm button whilst powering on the charger. Measure voltage input with a multimeter and adjust the value on-screen until it matches what your multimeter reads. Do the same also for your voltage outputs (base on battery XT60 voltage - which is the total of call cells) and then finally, each of your cells on the balance port (please watch the below video for instructions on how to do this. The same instructions apply to the M4Q). Once you carry out this procedure, the charger will no longer warn of mismatched cell voltage.
