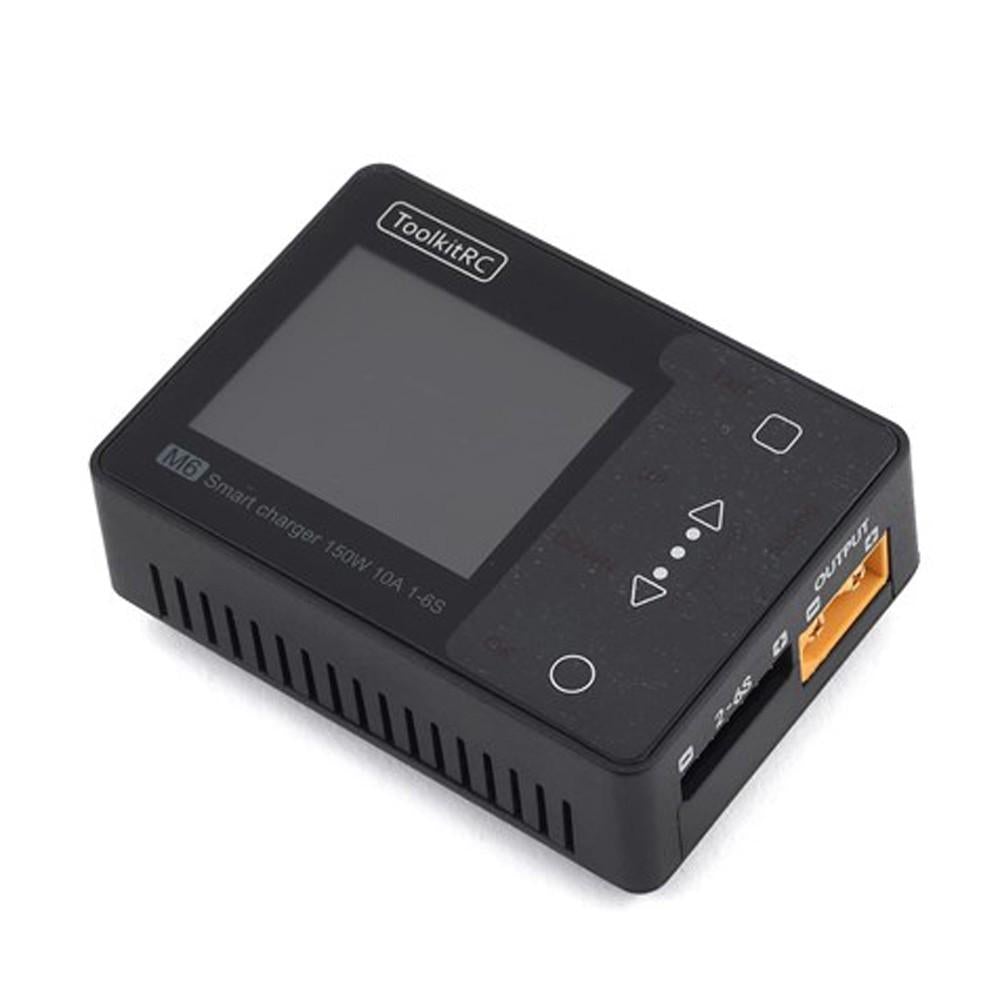

ToolkitRC M6 V2.0 150W 10A Charger, Cell Checker, Servo Tester

The Toolkit RC M6 V2.0 is a small 150w color screen charger! At heart, the M6 is a small and compact charger that boasts a wide array of other features not found in chargers on the market. Additional functionality includes a servo tester, battery cell checker, wattmeter (power meter), PWM/PPM/S.Bus input testers (for receiver testing), as well as output generators that offer variable voltage and amperage with DC current.

Toolkit M6 Features

• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM, S.Bus Input/output & Receiver tester
• Viable AMP/Volt DC Power supply (Requires external DC input)

Charger Features

• Lithium battery cut-off voltage can be set (TVC function)
• Measure battery voltage, internal resistance, balance
• Measure PWM,PPM, S.Bus signal values @ 1ms accuracy
• Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
• The customizable 1-28V constant output voltage, 1-10A constant output current
• Multi-language optional
• USB 2.1A@5.0V Output (Mobile device charging)
• U-disk firmware upgrade (Slave device)

Charger

• Input voltage: 7.0-28V
• Type of battery: Lipo, LiHV, LiFe, Lion @ 1-6S, NiMh @ 1-16S, Pb @ 1-10S
• Charge power: 150W / Up to 10A
• Discharge power: Recycle Mode: 150W/ Up to 10A Normal Mode: 8W @ Up to 2A
• USB: 2.1A @ 5.0V (Mobile Charging) or USB Firmware updating
• Dimensions: 68x49x26mm
• Weight: 80g
• LCD: 1.8inch TFT RGB, 160x128 Pixel

Measurement

• PWM: 880-2200us @ 20-400Hz
• PPM: 880-2200us*8CH @ 20-50Hz
• SBUS: 880-2200us*16CH @ 20-100Hz
• Voltage: 1.0-5.0V @ 1-6S
• IR: 10-99mR @ 1-6S

Output

• PWM: 500-2500us @ 20-1000Hz
• PPM: 880-2200us*8CH @ 50Hz
• SBUS: 880-2200us*16CH @ 74Hz
• Power: 1-10A @ 1-28V Mode:CC+CV

User Manual & Firmware

Error Codes

1.over current
2.overvoltage
3.over temperature
4.timeout
5.battery is invalid
6.input low
7.input is too high
8.balance is complete
9.is not connected to the balance port
10.not connected to the main port
11.timeout
12.types do not match
13.cells error
14.battery needs to be balanced
15.This mode is not rechargeable
