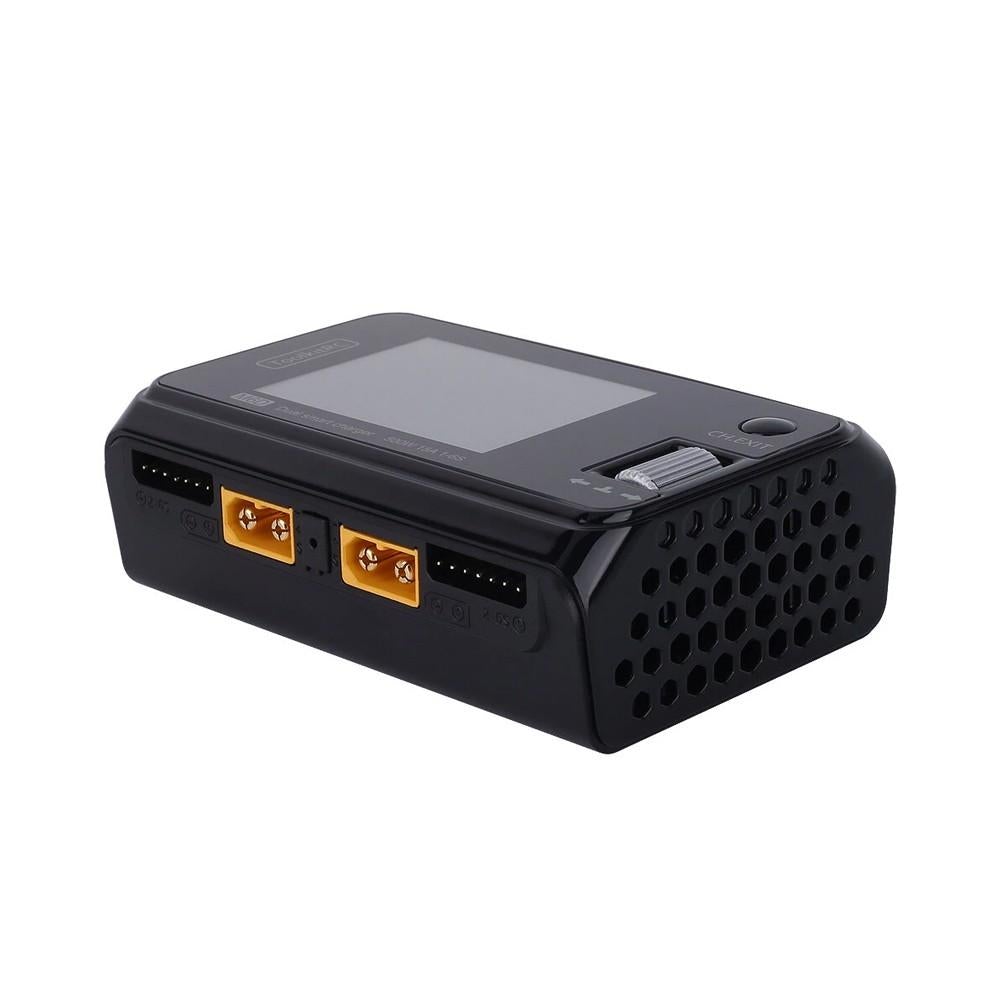

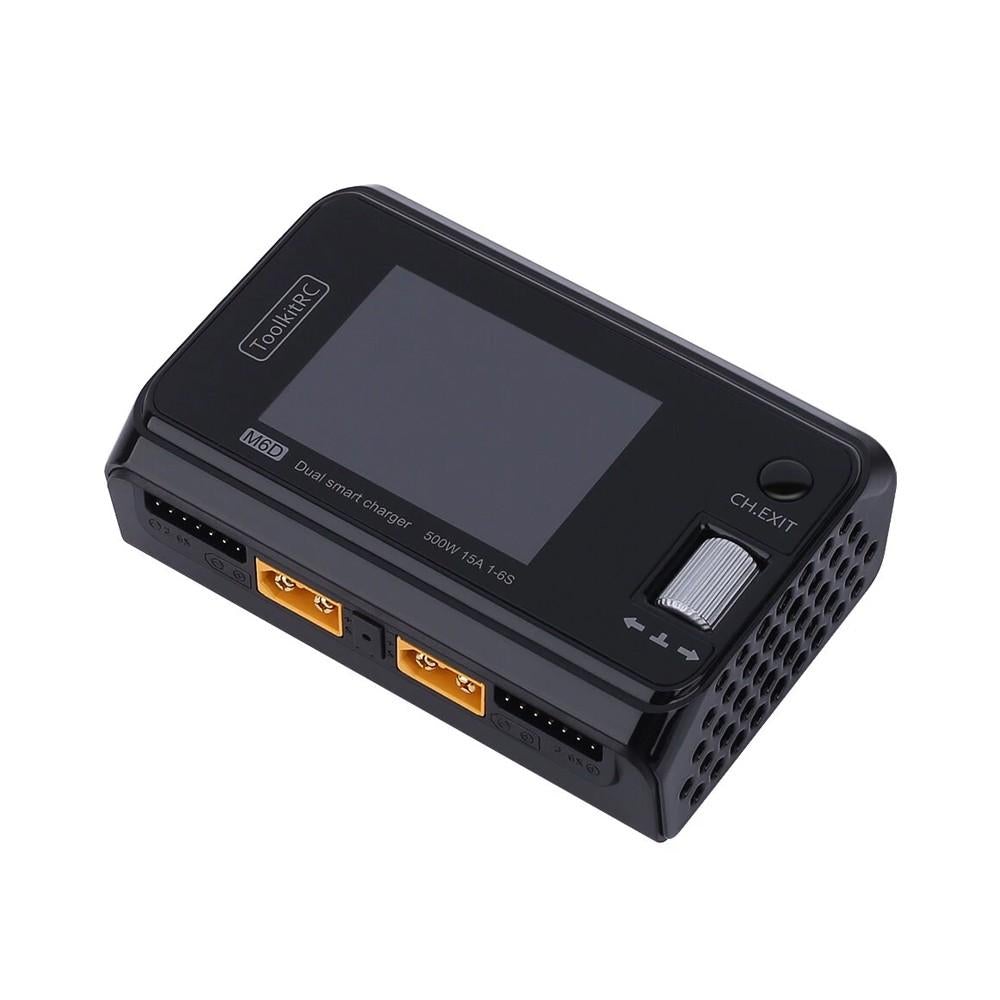

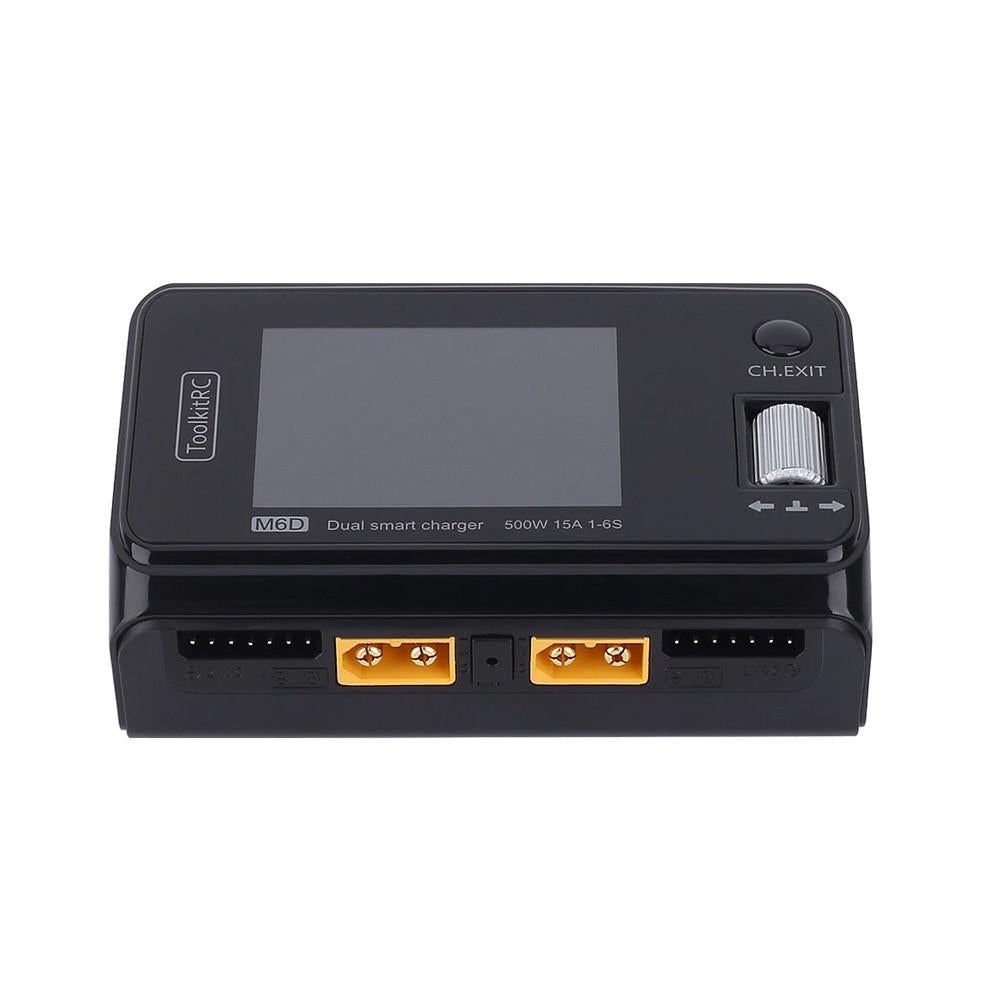

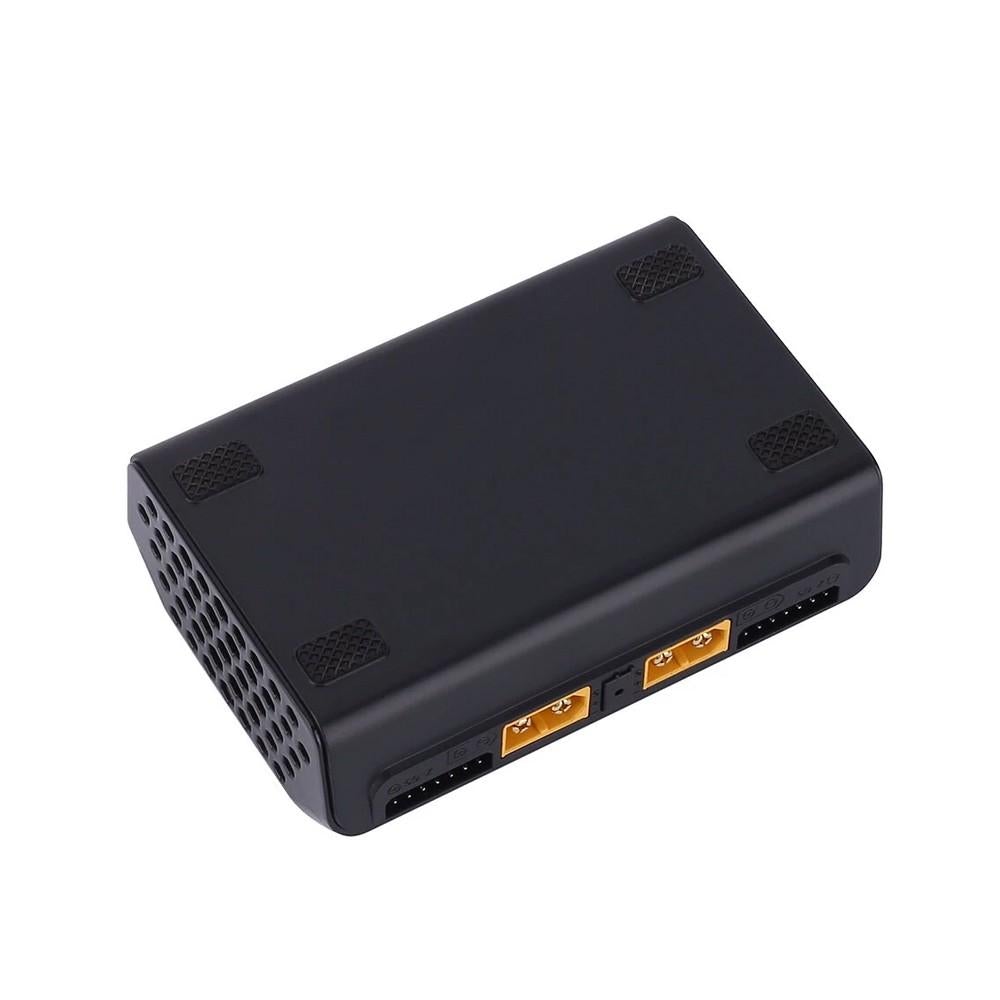

ToolKitRC M6D 500W 15A 1-6S DC Dual Smart Charger - TRC-A-02-04

The M6D Dual Smart Charger features asynchronous automatic power distribution and synchronous output for greater power. It includes an optimized heat dispersing system to dissipate high power heat in no time! You will find an easy-to-navigate system, integrated USB interface, and lots of cool features that make the M6D an excellent charger.

Features

• Dual-channel
• Small size
• High power density
• Optimize heat dissipation

Specifications

• Input: 7-28V@MAX30A
• Battery Type:
• LiPo LiHV LiFe Lion@1-6S
• NiMh @1-16S Pb @1-10S
• Bal Cur. : 800mA @2-6S
• Accuracy: <0.005V
• Charging Power:
• 0.1-15A@250W *2（Asynchronous mode）
• 0.1-25A@500W（Synchronous mode）
• Discharging Power:
• 0.1-15A@250W*2 Recycle Mode
• 0.1-3A@12W*2 Normal Mode
• USB: 2.1A@5V upgrade@USB3.0
• Battery Voltage: 1.0V-5.0V @1-6S
• Battery Internal Resistance: 1-100mR @1-6S

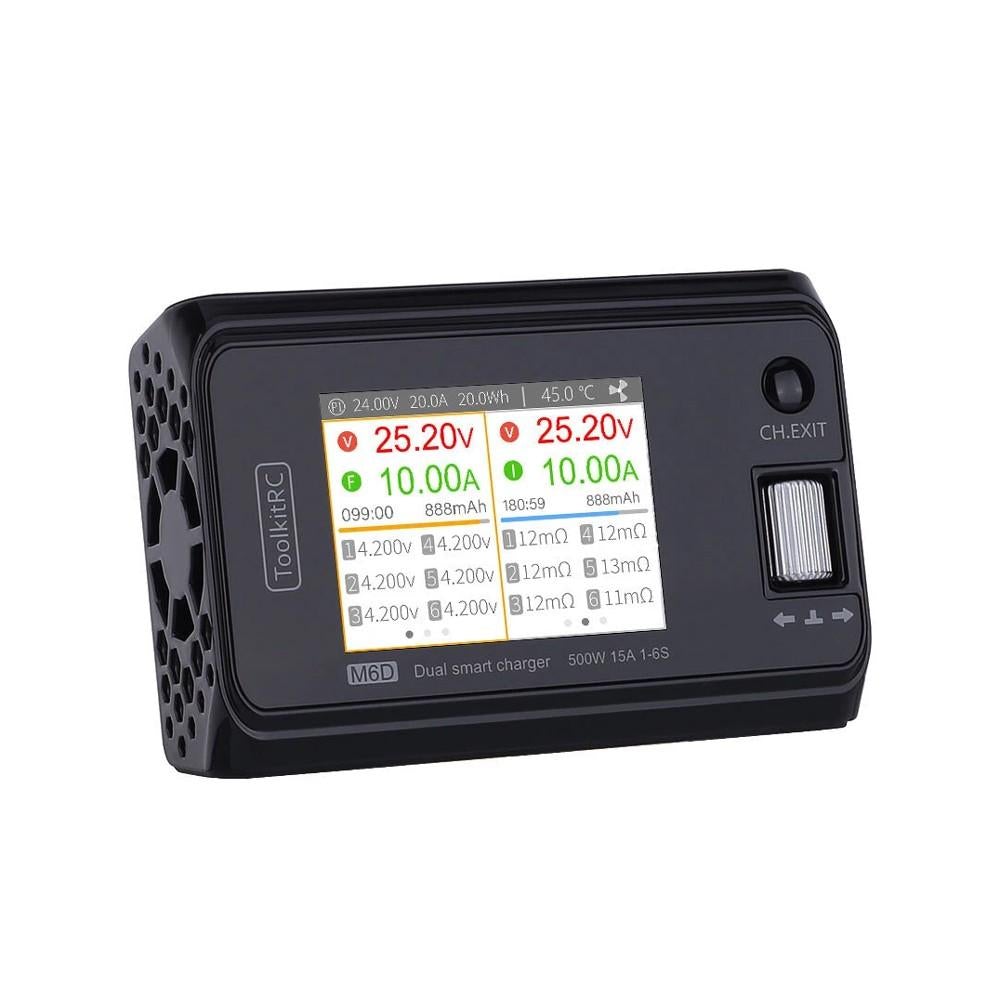

• Display: LCD IPS 2.4 inch 320*240 resolution
• Size: 98mm*68mm*35mm
• Weight: 220g
• Size: 108.5mm*80.5mm*46mm
• Weight: 300g

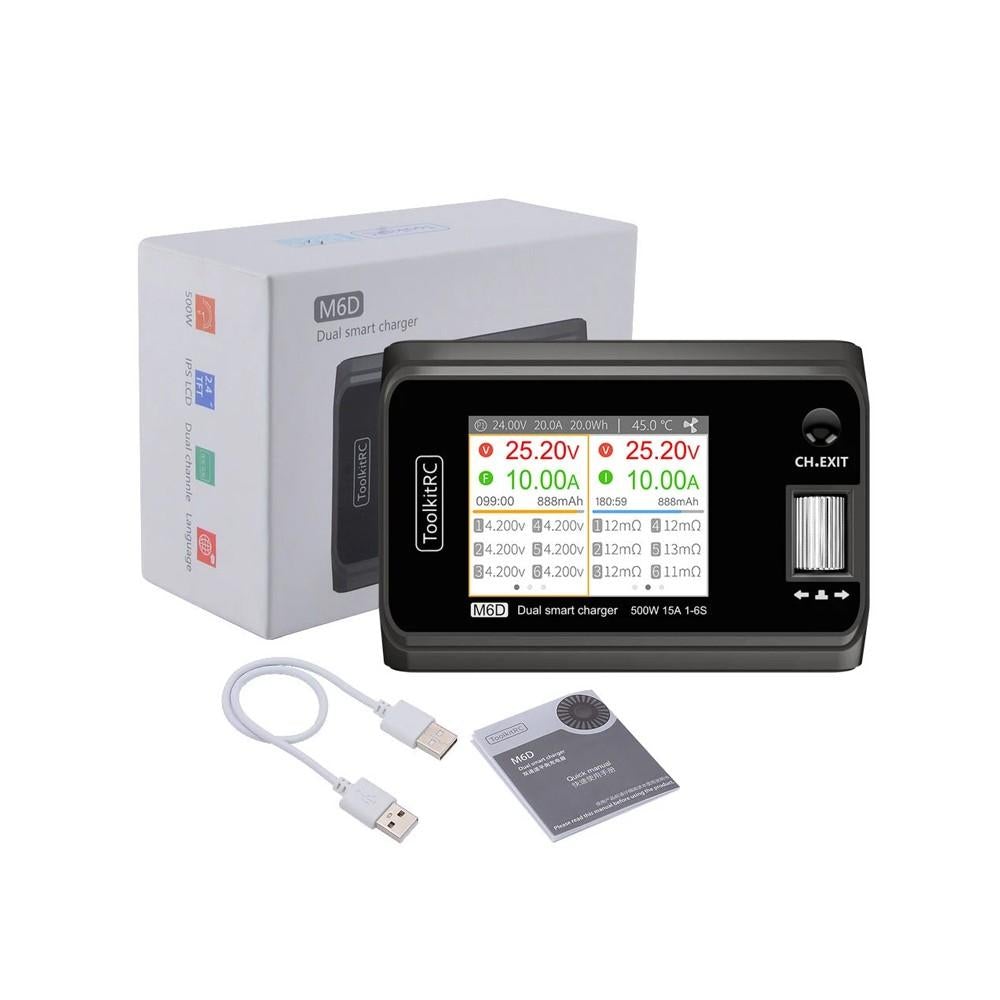

Includes

• 1 x ToolKitRC M6D 500W 15A 1-6S DC Charger

Problems?

If you're facing problems with mismatched voltages etc, please make sure to calibrate the voltages by holding down the confirm button whilst powering on the charger. Measure voltage input with a multimeter and adjust the value on-screen until it matches what your multimeter reads. Do the same also for your voltage outputs (base on battery XT60 voltage - which is the total of call cells) and then finally, each of your cells on the balance port (please watch the below video for instructions on how to do this). Once you carry out this procedure, the charger will no longer warn of mismatched cell voltage.
