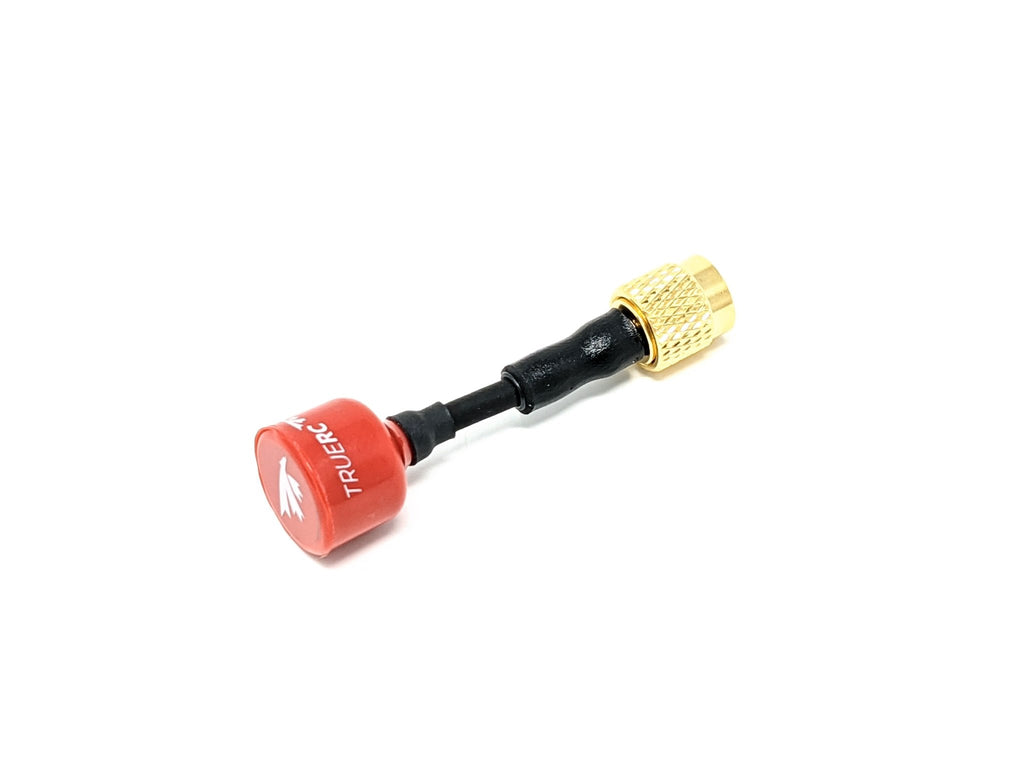

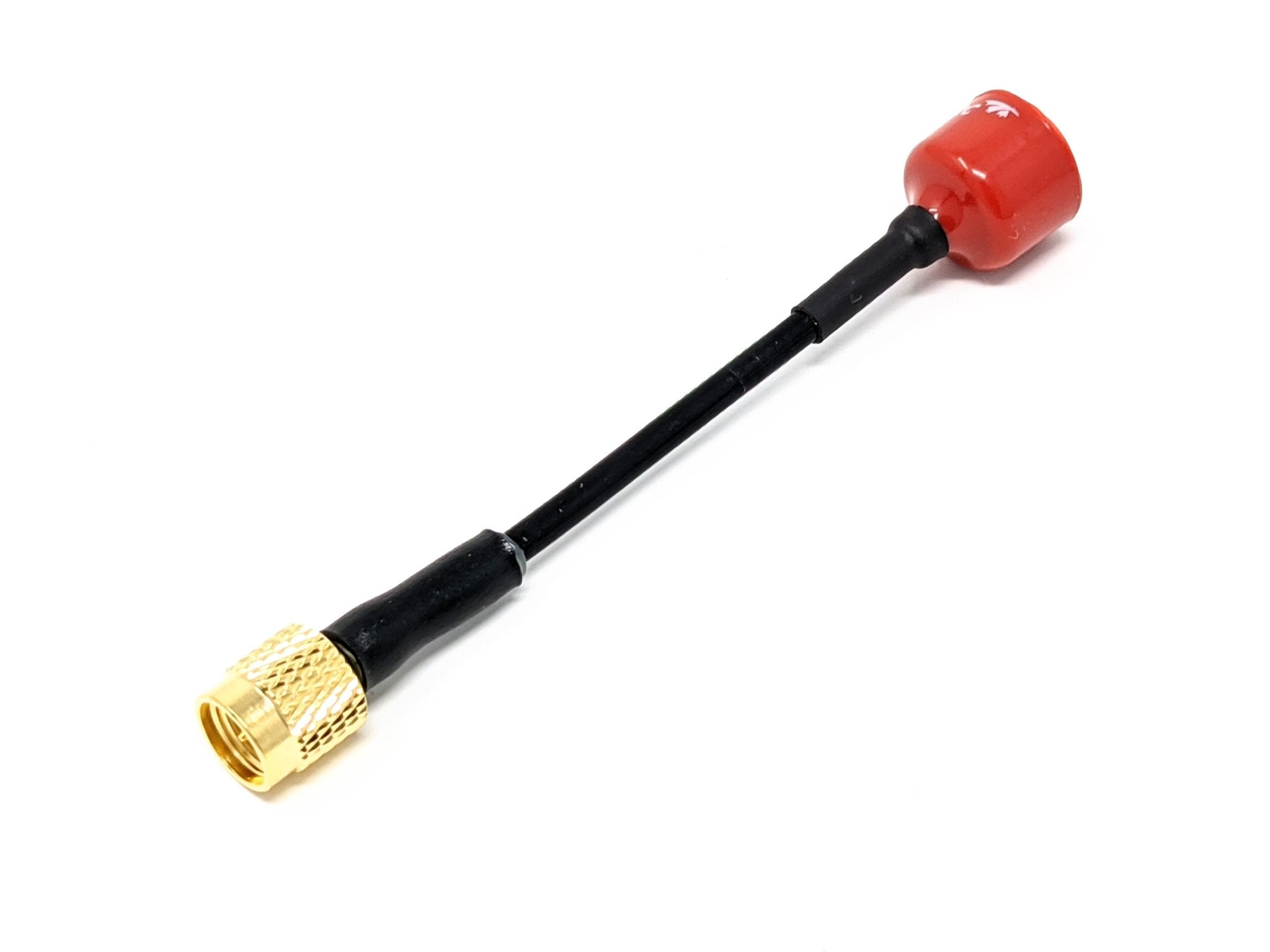

TrueRC Singularity 5.8Ghz Antenna

TrueRCSKU: DA1555
filler

Polarisation: RHCP
Connector Type: SMA
Length: Short
Price:
Sale price£15.95

Shipping calculated at checkout

Stock:
In stock

Description

The singularity 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still. It is the smallest and lightest 5.8GHz CP antenna ever made.

Specifications:

  • Gain: 1.9dbic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -15 to -30dB (1.9%)
  • Bandwidth: 5.6GHz-6.0GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.5:1
  • Weight: 1.03g to 3.55g depending on configuration
  • Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
  • Length: Vary with cable option
  • Cable: RG405, RG178, 1.13mm
  • Connector: True-SMA/90, MMCX/90, U.FL

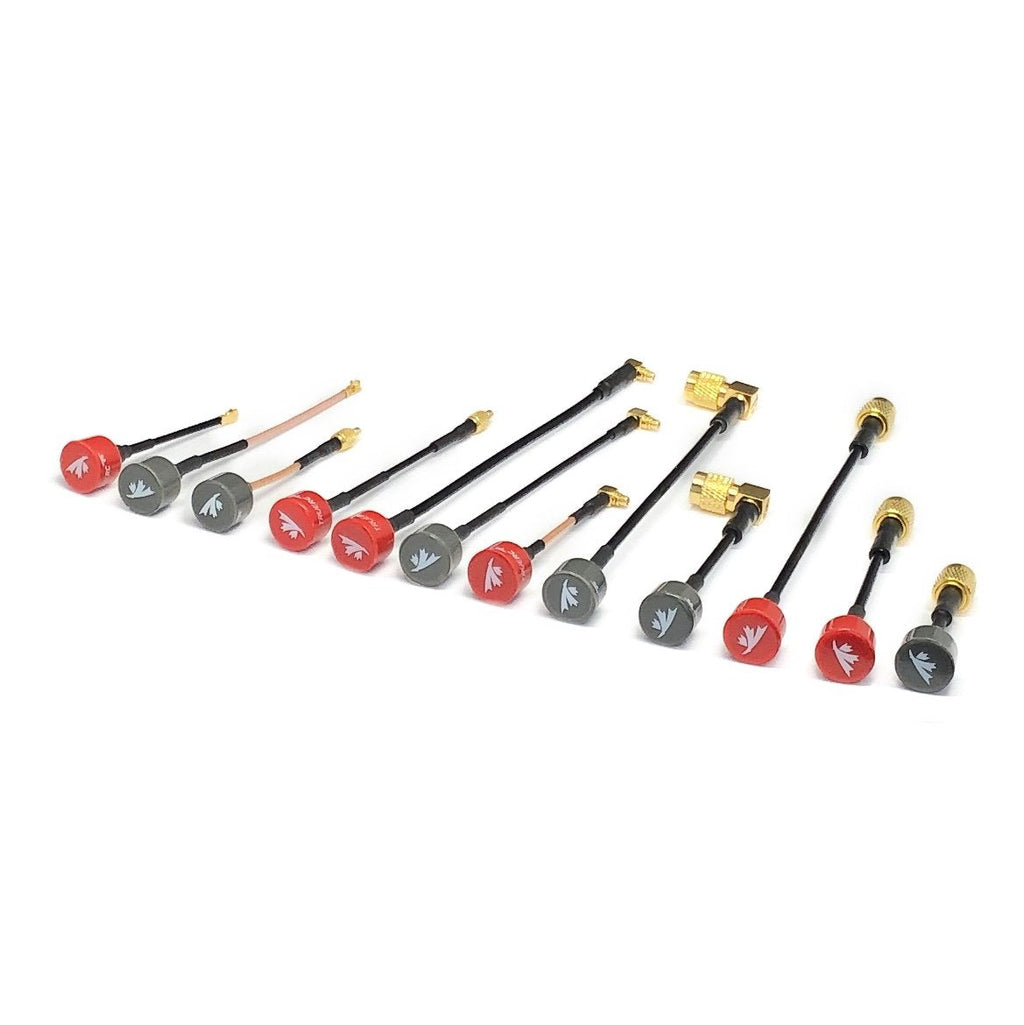

Sizes:

 Type

Length

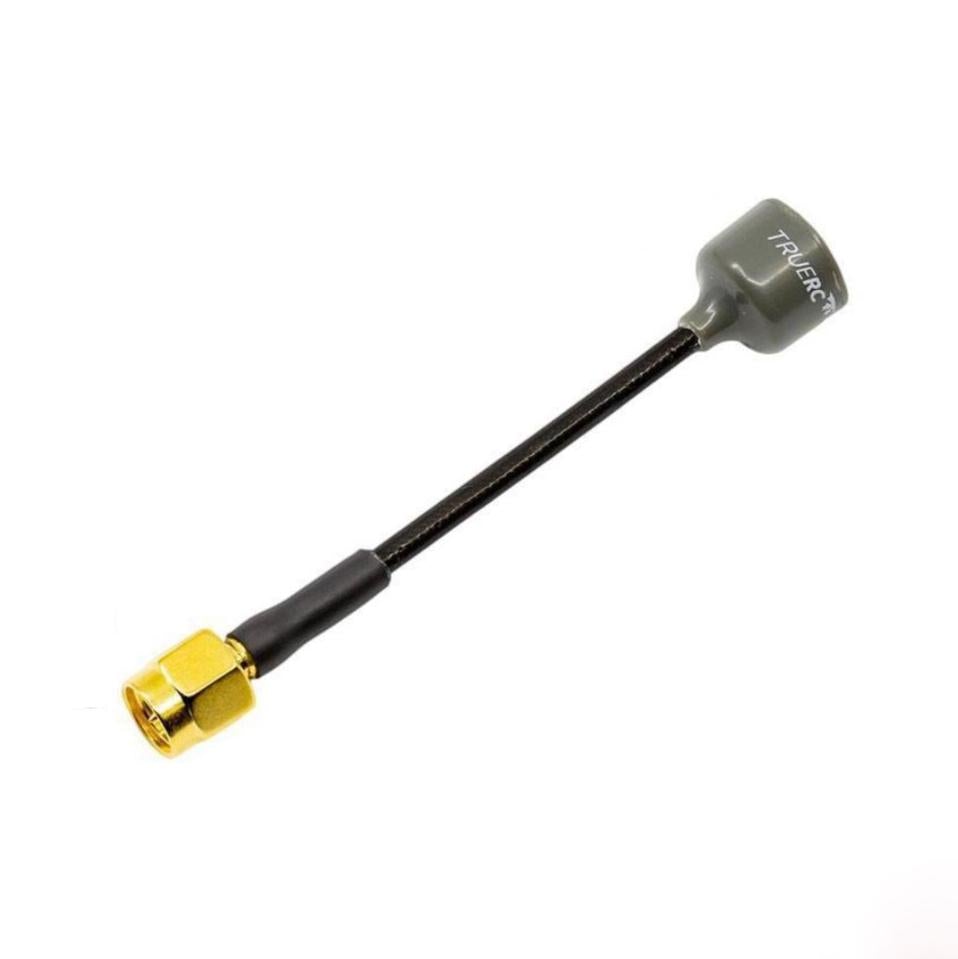

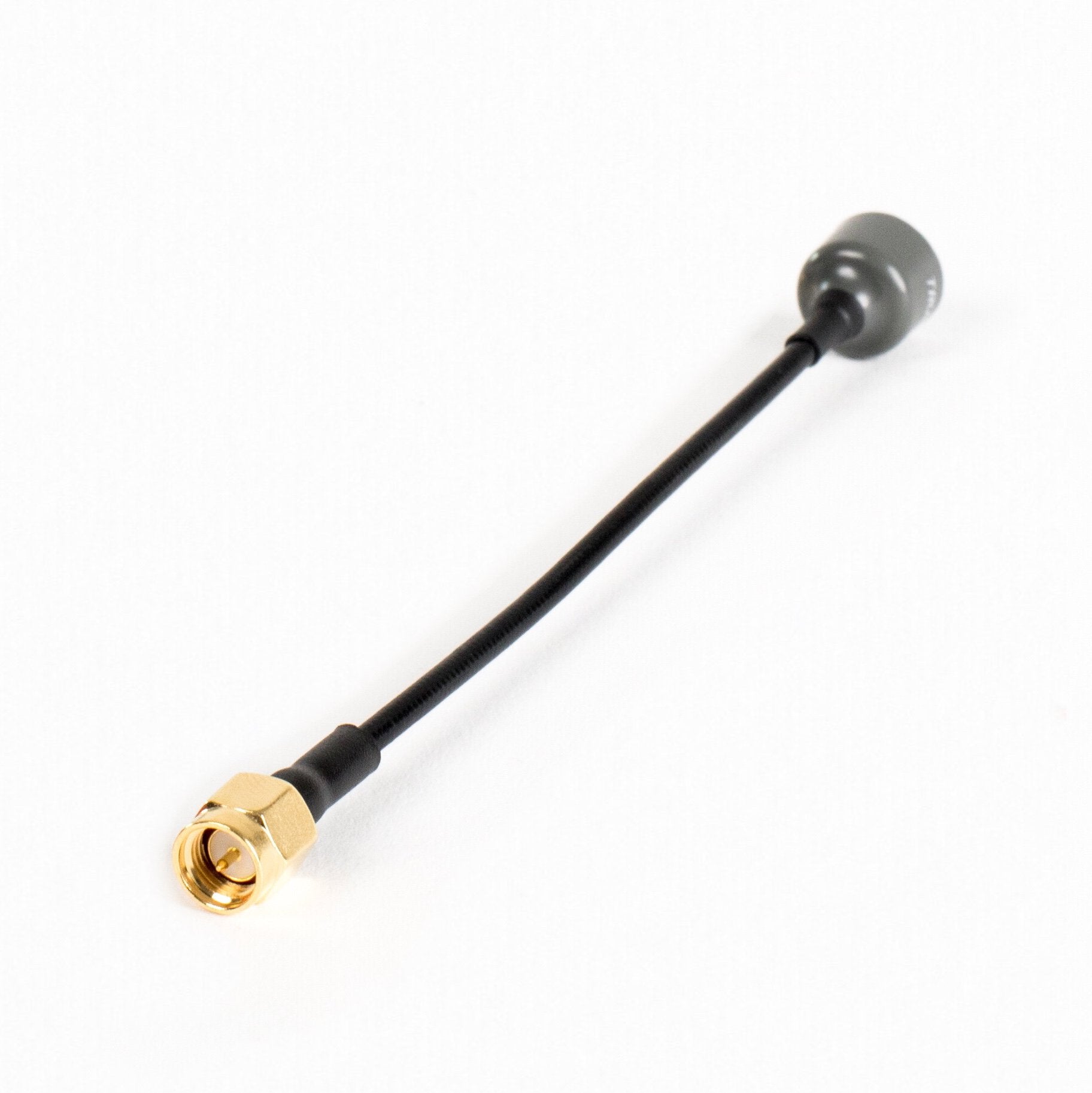

SMA regular

62mm

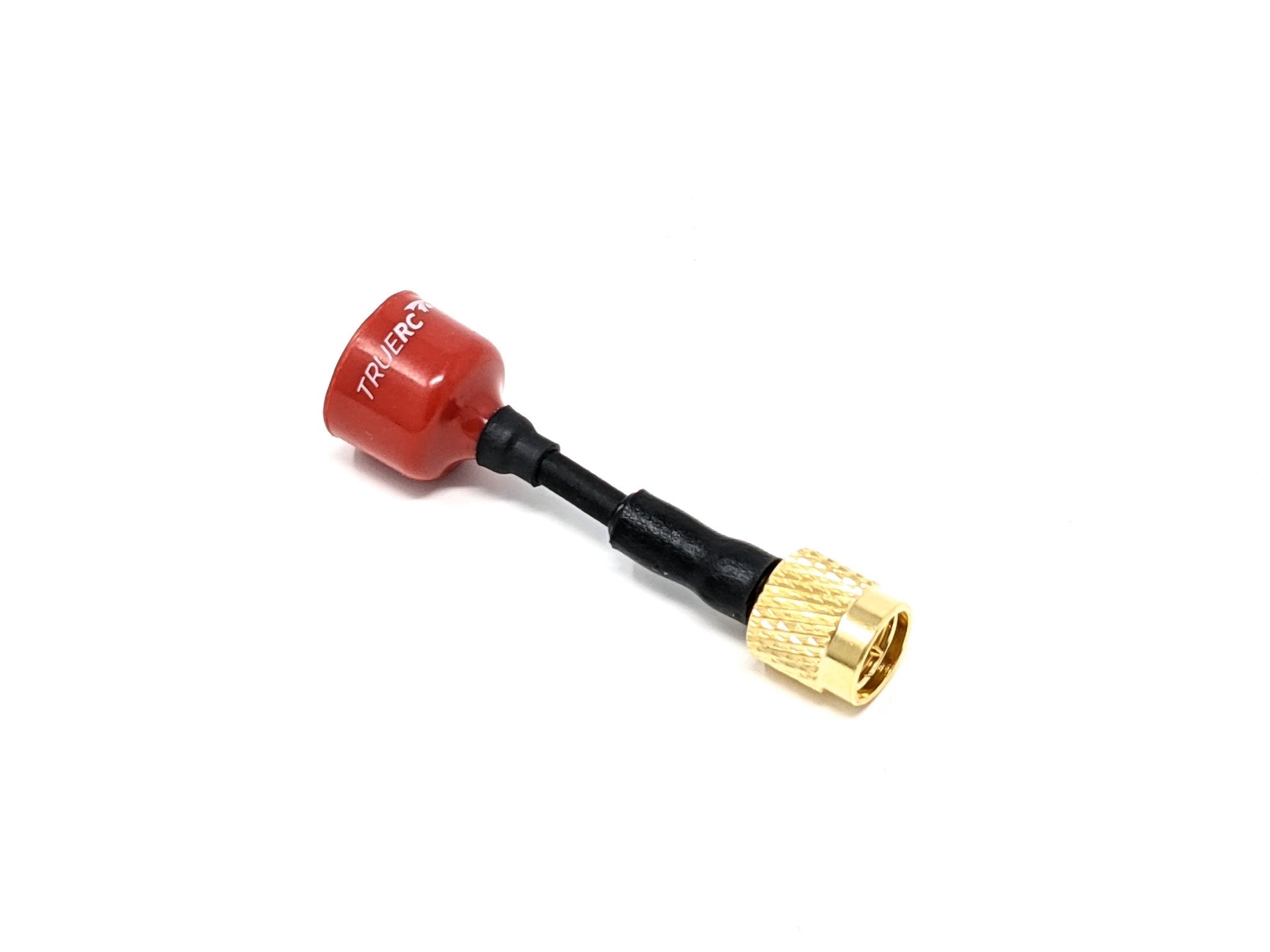

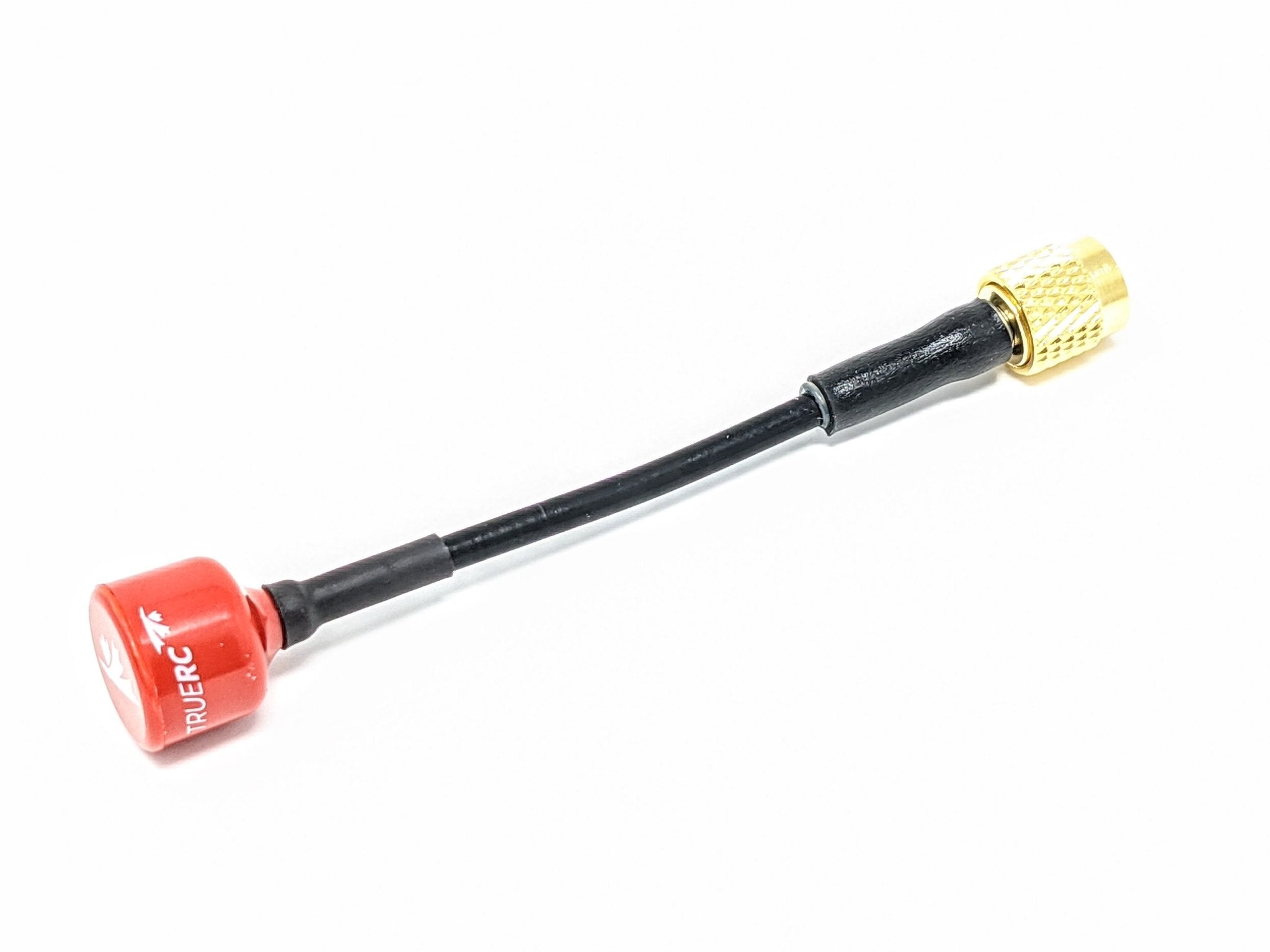

SMA short

35mm
SMA long 120mm

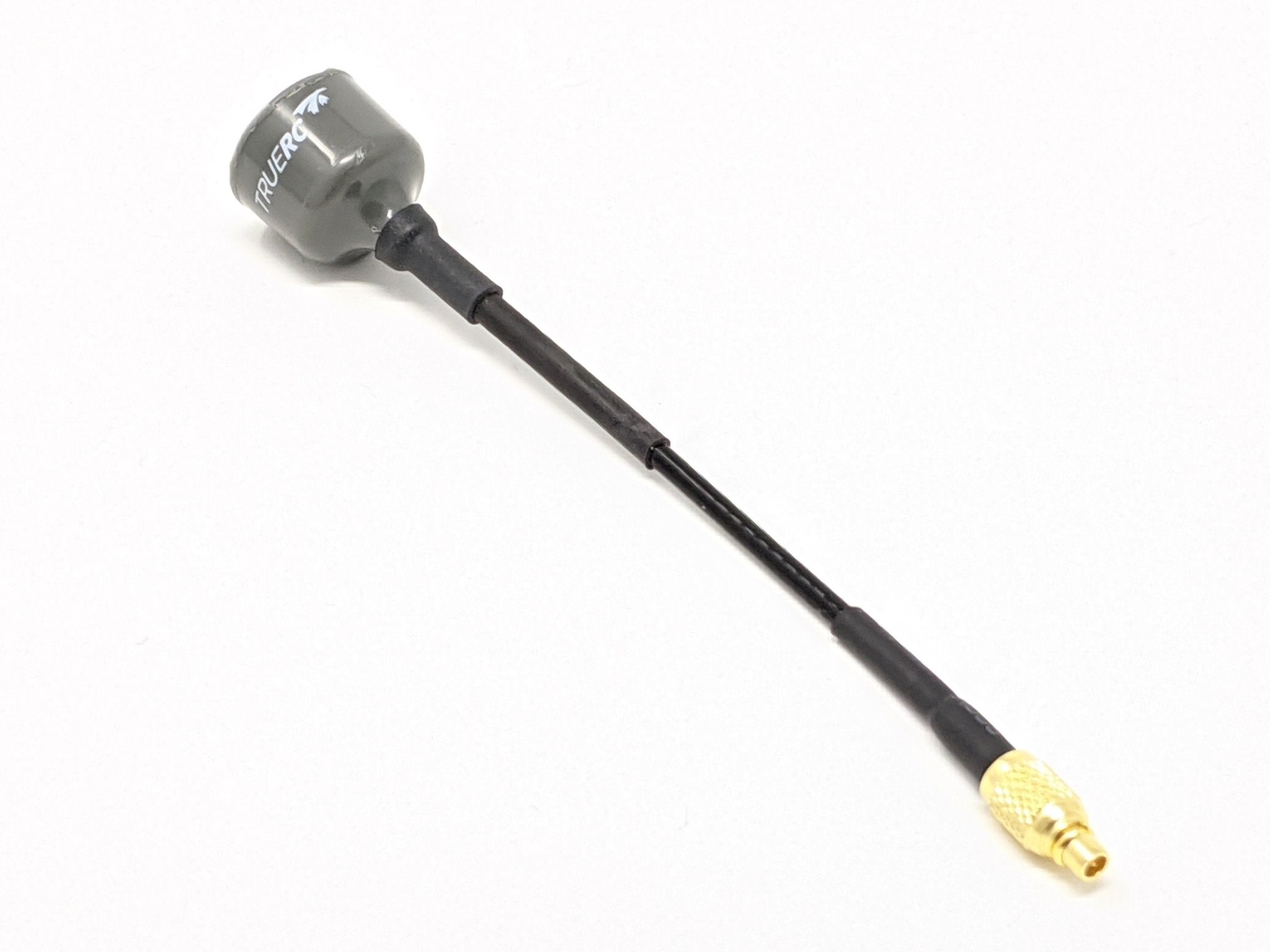

MMCX regular 72mm
MMCX short 45mm

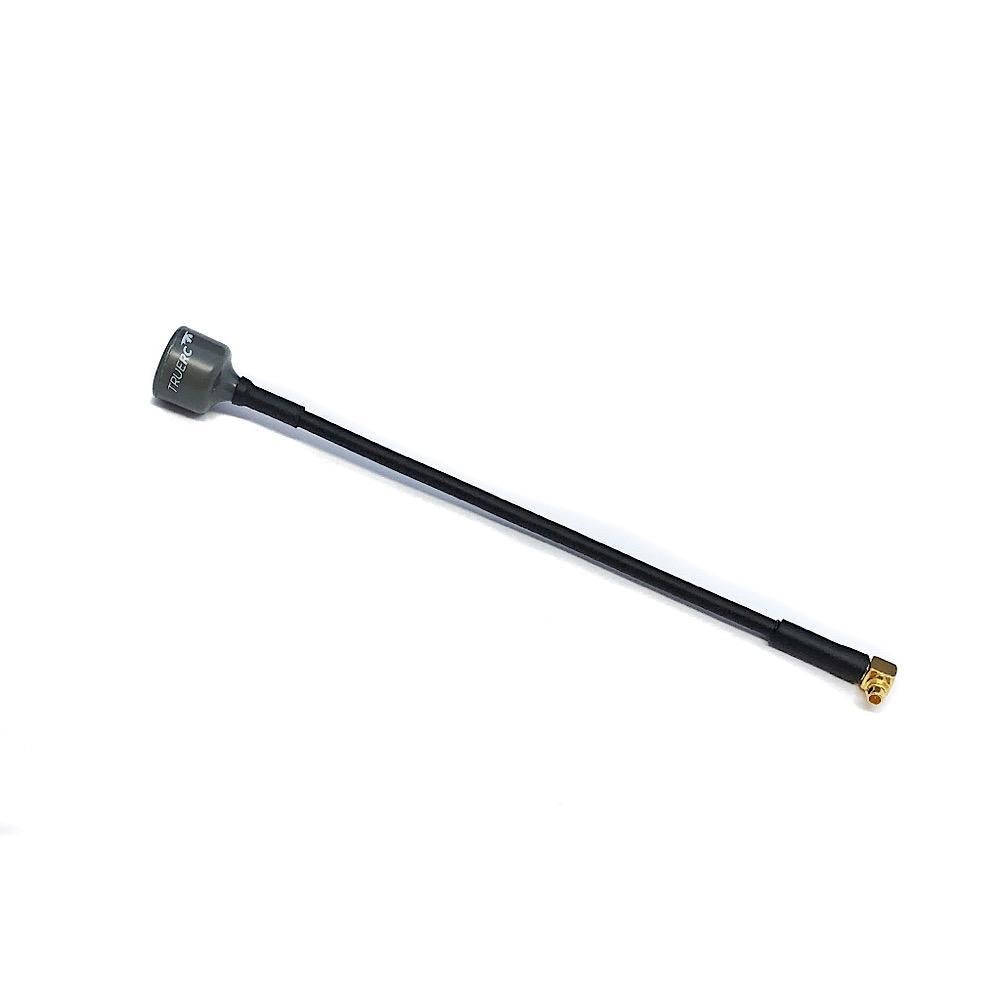

MMCX90 regular 90mm

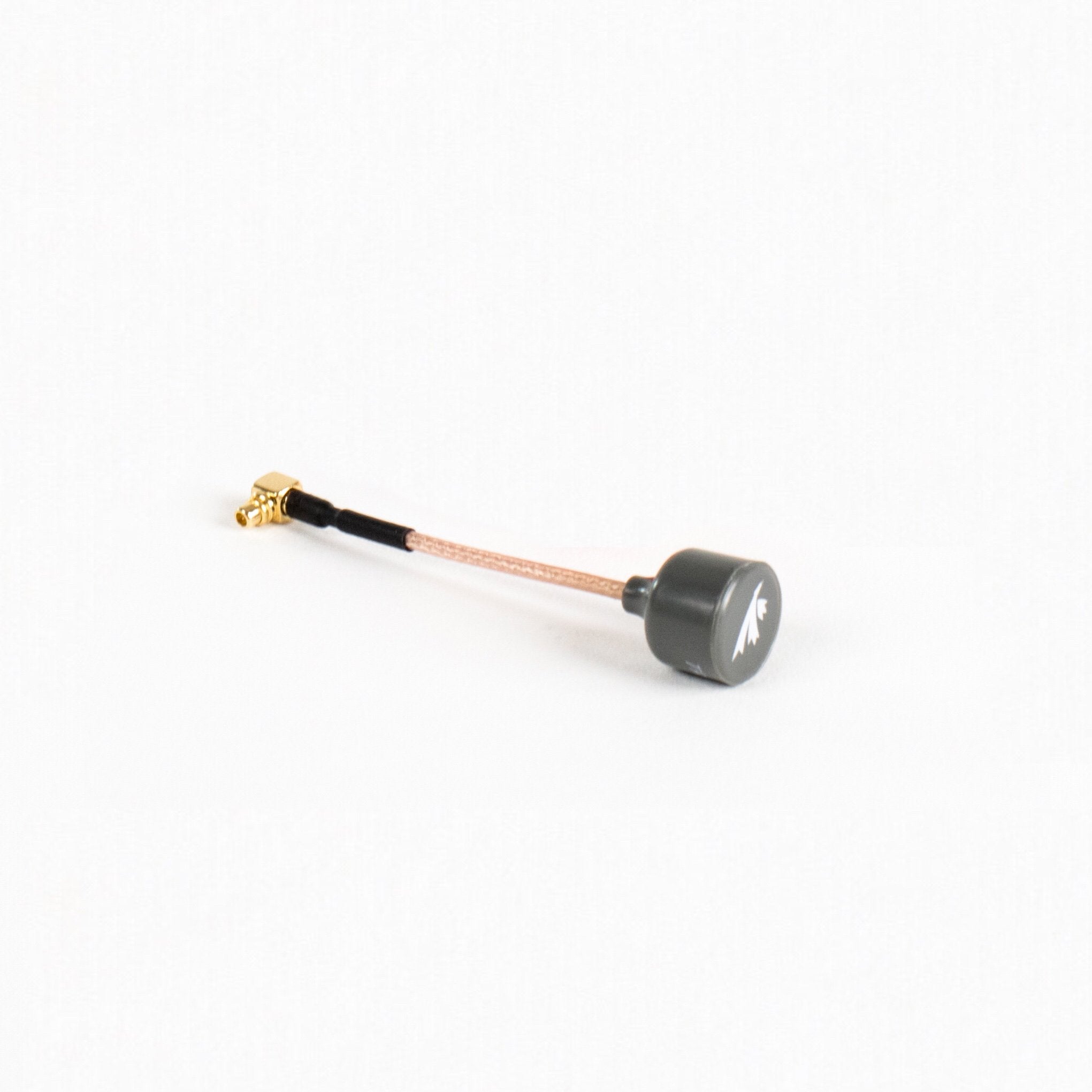

MMCX90 short 45mm
MMCX90 long 120mm

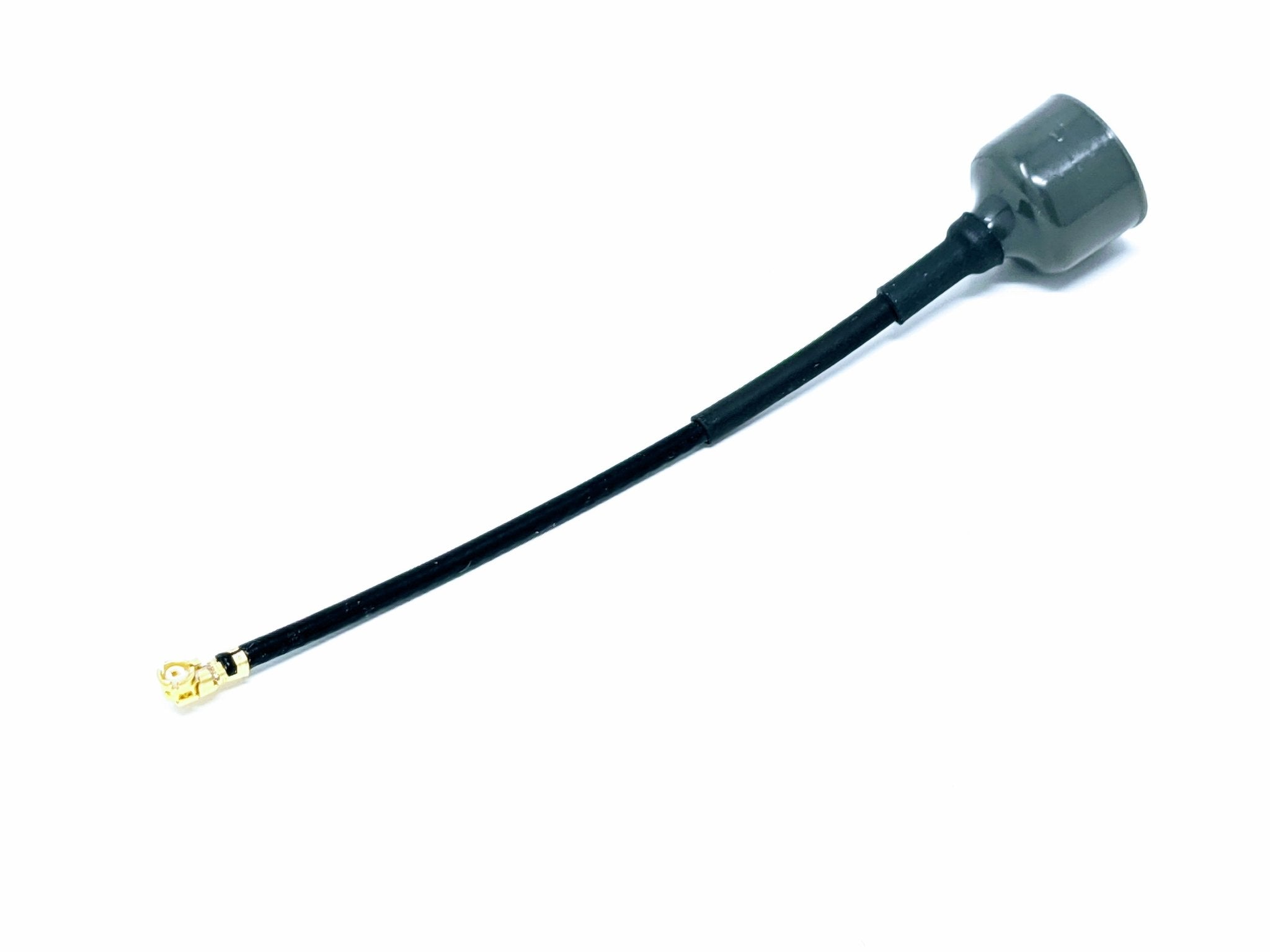

U.FL regular 72mm
U.FL short 40mm
SMA90 long 120mm
SMA90 regular 62mm
U.FL lite 72mm
U.FL lite 112mm
