Description
Digital FPV Walksnail Avatar HD Pro Kit with 32GB of built-in DVR storage, Gyroflow support.
This set is designed for the Walksnail Avatar digital FPV system.
Step into the world of Digital FPV with VTX and camera bundle. Enjoy razor-sharp live FPV images when putting this kit on your rc model of choice. Combine this kit with a stand alone video receiver or the Walksnail Avatar Goggle X with built-in VRX to enjoy the thrill of digital Full HD FPV.
The Walksnail Avatar HD Pro Kit comes with built-in DVR storage of 32GB to record your flight footage directly from the camera without the need for an additional DVR or action camera. Save weight, space and money.
This kit fully supports GyroFlow, the open-source and very advanced video stabilization tool for cinematography, drone videography and much more. Whether you are flying in very turbulent conditions or are doing some speed manouvre, GyroFlow will minimalize any vibrations or motion blur. Stabilize your footage to get beautiful footage that’s pleasant to watch!
Specification

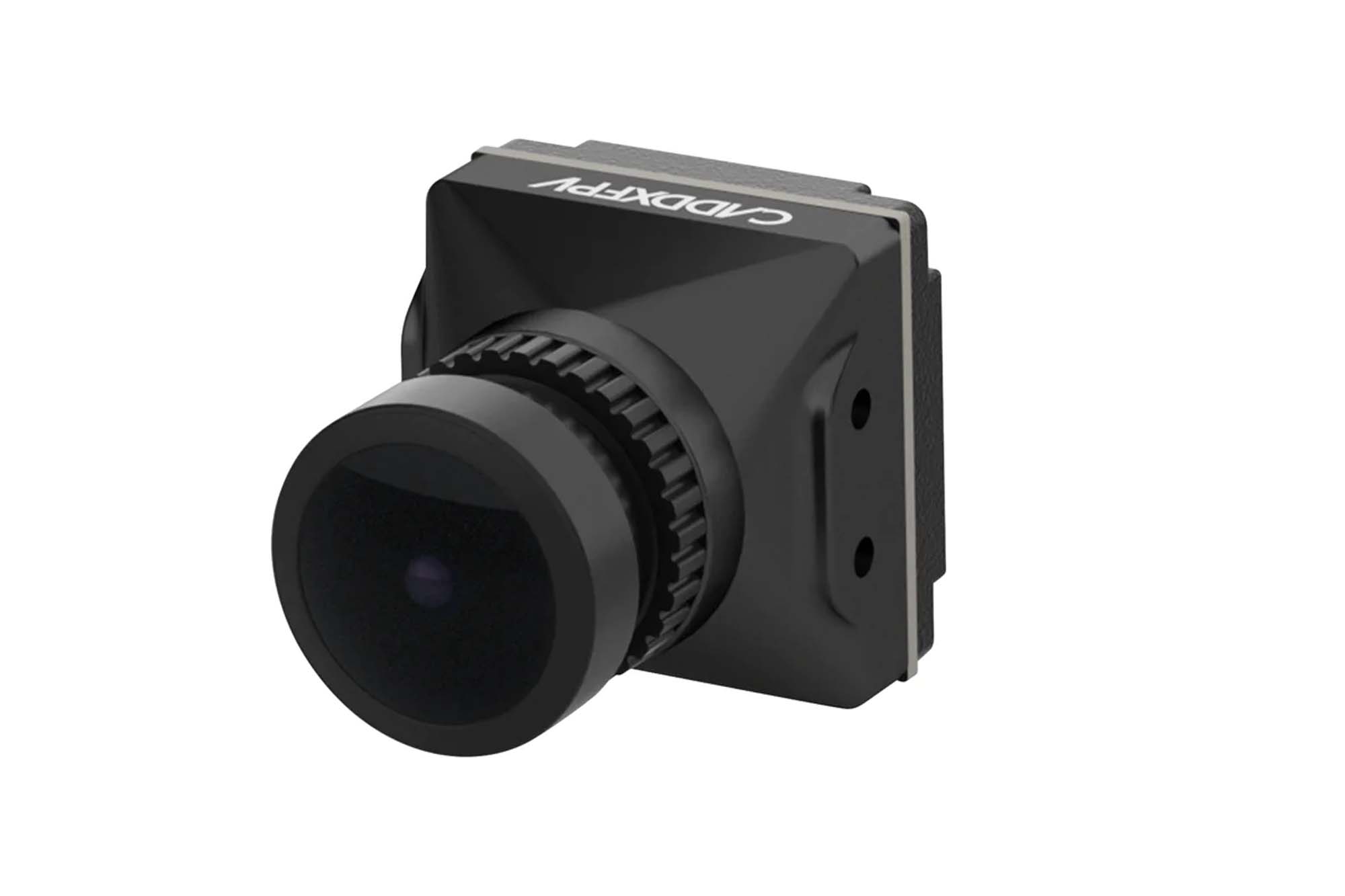

| Camera | |
| Model | Avatar HD pro camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
| Resolution | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Weight | 9.5g |
| Dimensions | 19*19*24mm |
| Coaxial Cable | 140mm |
| VTX | |
| Model | Avatar V2 module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 33.5*33.5*10.5mm |
| Storage | 8G/32G |
| Recording | 1080p/720p |
| Weight | 17.6g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 1(IPEX) |

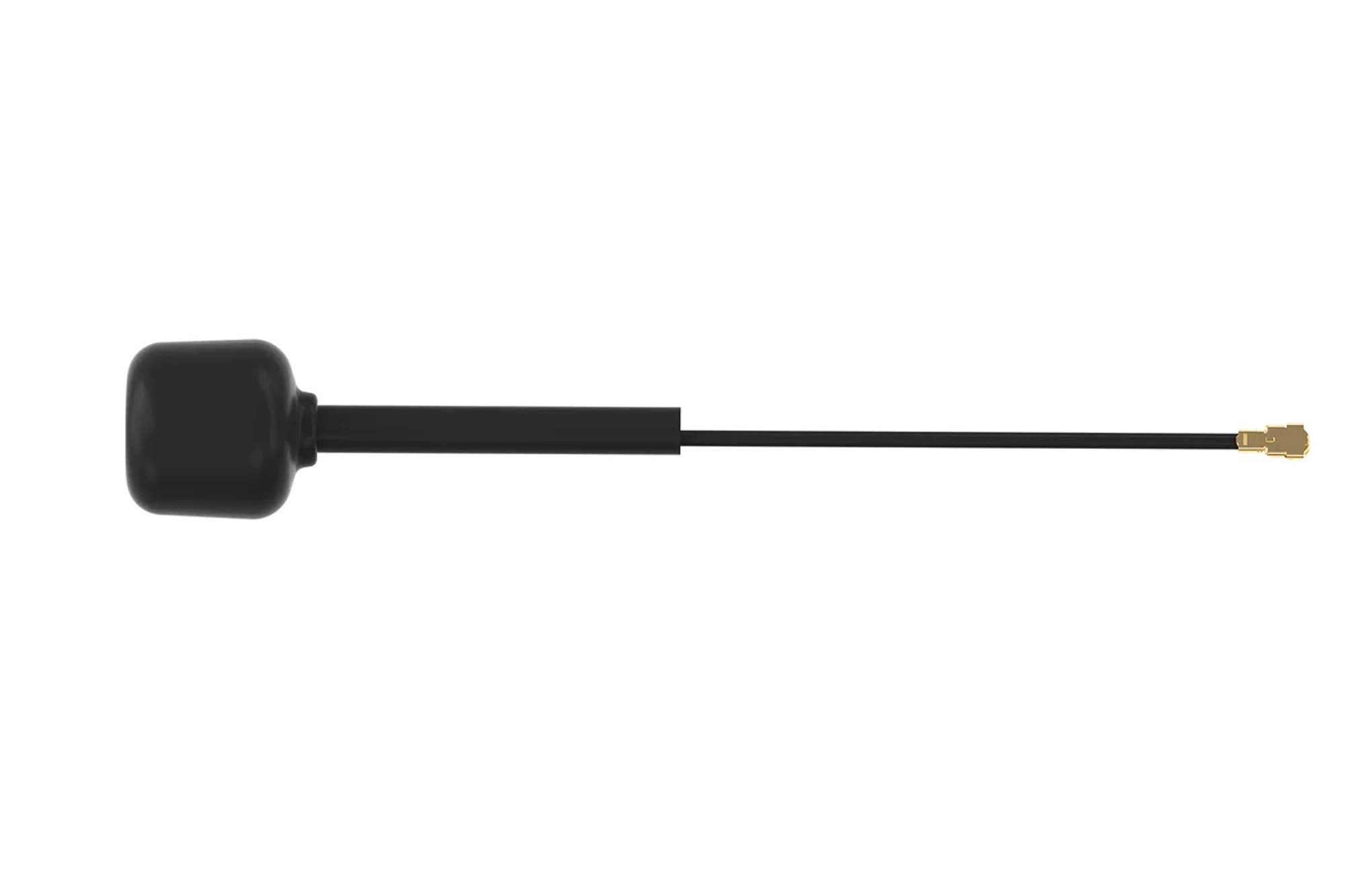

| Avatar V2 antenna | |
| Polarization | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Gain | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | R15 X 45mm(without cable) |
| Weight | 2g |
Includes
- 1x Walksnail Avatar Pro HD Kit (Pro Avatar FPV camera plus VTX with 32GB onboard storage)
- 1x USB transfer extension cable
- 1x Connector Cable Pack
Product Details
| Product Type | VTX |
| Shipping Weight | 65 grams |
| Vendor | Caddx |
